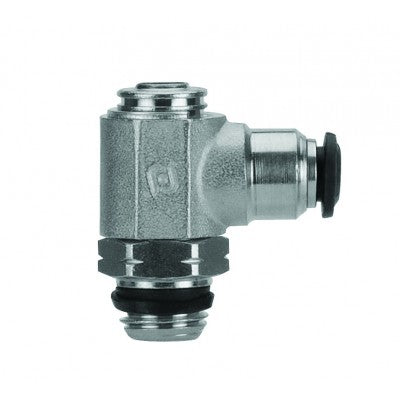

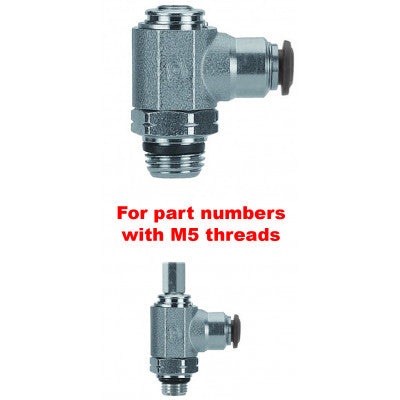

50901N-12-1/2" AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Screwdriver Adjust | 12mm Tube x 1/2" Male Swift-Fit
50901N-12-1/2 by AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Screwdriver Adjust | 12mm Tube x 1/2" Male Swift-Fit
50901N-12-1/2 by AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Screwdriver Adjust | 12mm Tube x 1/2" Male Swift-Fit
50901N-12-1/2" AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Screwdriver Adjust | 12mm Tube x 1/2" Male Swift-Fit

50901N-12-1/2 by AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Screwdriver Adjust | 12mm Tube x 1/2" Male Swift-Fit

Save $12.83 Save $12.83
$32.07
$32.07 - $32.07
$32.07
$19.24
$19.24 - $19.24
$19.24
Specifications for Variant SKU: 50901N-12-1/2 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): 90 Degree
Ends Configuration: 12mm Push-to-Connect, 1/2in Male Swift-Fit
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Metric Tube Flow Control (OUT)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel-plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B (IN) B L1 L2 CH Code
50901N-3-M5 3 mm M5 0.156" 4 mm 19 mm 24 mm 8 mm C
50901N-4-M5 4 mm M5 0.156" 4 mm 19 mm 24 mm 8 mm C
50901N-4-1/8 4 mm 1/8" 0.215" 5.5 mm 21 mm 30.5 mm 14 mm C
50901N-5-M5 5 mm M5 0.156" 4 mm 20 mm 24 mm 8 mm C
50901N-5-1/8 5 mm 1/8" 0.215" 5.5 mm 21.5 mm 30.5 mm 14 mm C
50901N-6-M5 6 mm M5 0.156" 4 mm 20.5 mm 24 mm 8 mm C
50901N-6-1/8 6 mm 1/8" 0.273" 7 mm 22.5 mm 30.5 mm 14 mm C
50901N-6-1/4 6 mm 1/4" 0.215" 5.5 mm 25 mm 35.5 mm 17 mm C
50901N-8-1/8 8 mm 1/8" 0.215" 5.5 mm 24 mm 30.5 mm 14 mm C
50901N-8-1/4 8 mm 1/4" 0.273" 7 mm 26 mm 35.5 mm 17 mm C
50901N-8-3/8 8 mm 3/8" 0.293" 7.5 mm 28.5 mm 42.5 mm 20 mm C
50901N-10-3/8 10 mm 3/8" 0.293" 7.5 mm 30.5 mm 41 mm 20 mm C
50901N-12-3/8 12 mm 3/8" 0.293" 7.5 mm 32.5 mm 41 mm 20 mm C
50901N-12-1/2 12 mm 1/2" 0.351" 9 mm 35 mm 47 mm 24 mm C
50901N-14-1/2 14 mm 1/2" 0.351" 9 mm 35.5 mm 47 mm 24 mm C
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
