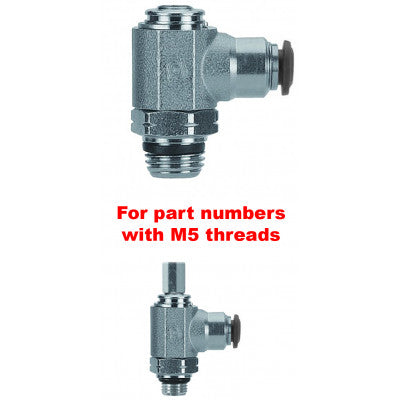

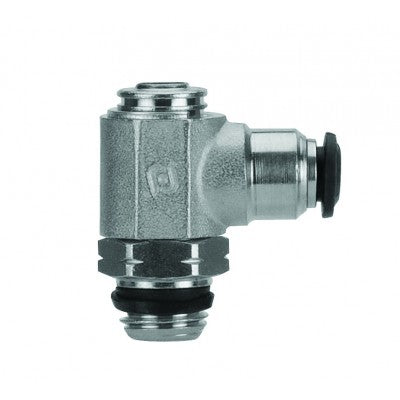

50901N-5-M5 AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Screwdriver Adj | 5mm Tube x M5 Male

50901N-5-M5 by AIGNEP | Functional (Flow Controls) Series | Flow Control | Meter Out | Screwdriver Adj | 5mm Tube x M5 Male

Save $7.27

$18.17

$18.17 - $18.17

$18.17

$10.90

$10.90 - $10.90

$10.90

Specifications for Variant SKU: 50901N-5-M5 AIGNEP
Series:	Functional (Flow Controls) Series
Shape (Orientation):	90 Degree
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Metric Tube Flow Control (OUT)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel-plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Tube	A	B (IN)	B	L1	L2	CH	Code
50901N-3-M5	3 mm	M5	0.156"	4 mm	19 mm	24 mm	8 mm	C
50901N-4-M5	4 mm	M5	0.156"	4 mm	19 mm	24 mm	8 mm	C
50901N-4-1/8	4 mm	1/8"	0.215"	5.5 mm	21 mm	30.5 mm	14 mm	C
50901N-5-M5	5 mm	M5	0.156"	4 mm	20 mm	24 mm	8 mm	C
50901N-5-1/8	5 mm	1/8"	0.215"	5.5 mm	21.5 mm	30.5 mm	14 mm	C
50901N-6-M5	6 mm	M5	0.156"	4 mm	20.5 mm	24 mm	8 mm	C
50901N-6-1/8	6 mm	1/8"	0.273"	7 mm	22.5 mm	30.5 mm	14 mm	C
50901N-6-1/4	6 mm	1/4"	0.215"	5.5 mm	25 mm	35.5 mm	17 mm	C
50901N-8-1/8	8 mm	1/8"	0.215"	5.5 mm	24 mm	30.5 mm	14 mm	C
50901N-8-1/4	8 mm	1/4"	0.273"	7 mm	26 mm	35.5 mm	17 mm	C
50901N-8-3/8	8 mm	3/8"	0.293"	7.5 mm	28.5 mm	42.5 mm	20 mm	C
50901N-10-3/8	10 mm	3/8"	0.293"	7.5 mm	30.5 mm	41 mm	20 mm	C
50901N-12-3/8	12 mm	3/8"	0.293"	7.5 mm	32.5 mm	41 mm	20 mm	C
50901N-12-1/2	12 mm	1/2"	0.351"	9 mm	35 mm	47 mm	24 mm	C
50901N-14-1/2	14 mm	1/2"	0.351"	9 mm	35.5 mm	47 mm	24 mm	C

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
