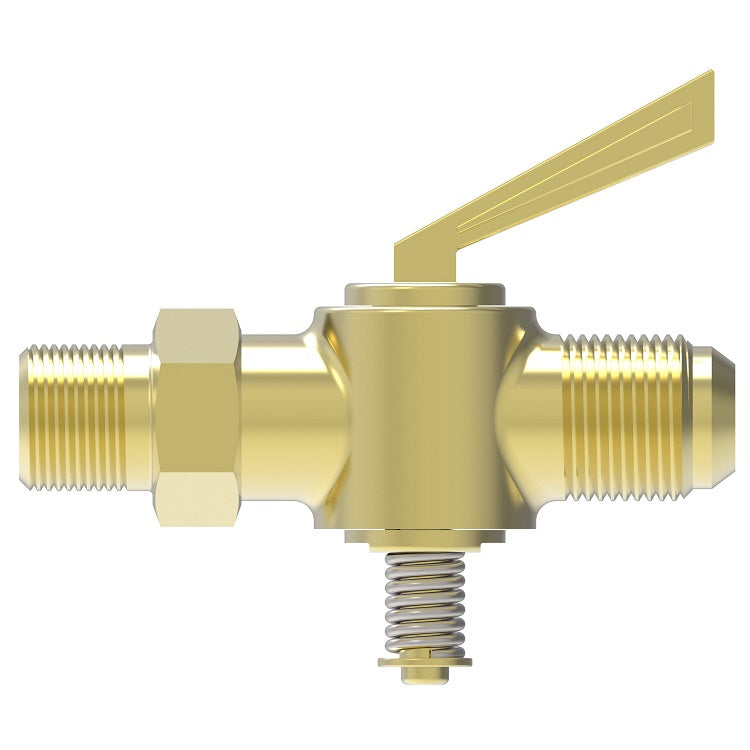

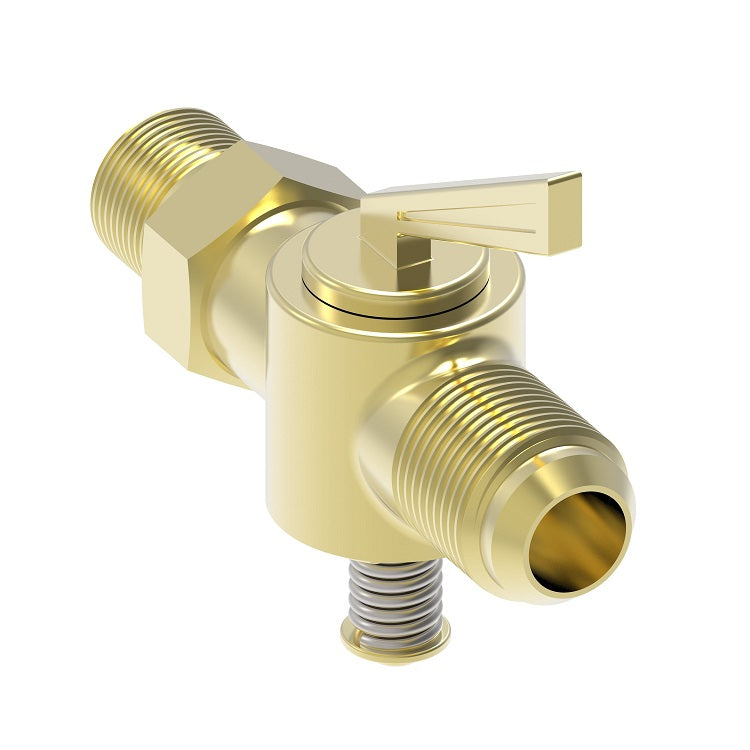

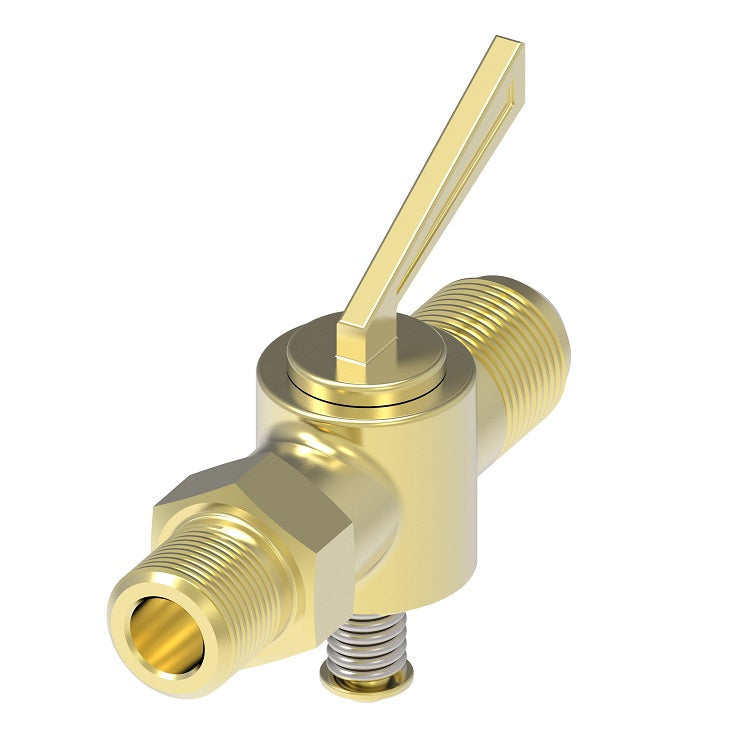

537 by Danfoss | Ground Plug Drain | SAE 45° Flare Straightway | 1/4" Male SAE 45° Flare x 1/8" Male MPT | Brass

537 by Danfoss | Ground Plug Drain | SAE 45° Flare Straightway | 1/4" Male SAE 45° Flare x 1/8" Male MPT | Brass

Name: 537 by Danfoss | Ground Plug Drain | SAE 45° Flare Straightway | 1/4" Male SAE 45° Flare x 1/8" Male MPT | Brass
Brand: Danfoss/Eaton
SKU: 537 Danfoss
Price: 29.1 USD
Availability: InStock

$29.10 - $29.10

$29.10

$29.10 - $29.10

$29.10

Aeroquip® by Danfoss
Ground Plug Drain - SAE 45° Flare Double

Specifications for Variant SKU: 537 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male SAE 45 Flare, 1/8in Male Male NPT
Material(s):	Brass

Applications:
Designed for automotive or industrial use.
Used With:
Copper, aluminum, steel and plastic tubing where applicable.
Material:
Brass bodies and handles.
Pressure:
30 psi working pressure, except where noted.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with metal tubing. For use with plastic tubing, refer to the tubing temperature range.
Conformance:
Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.
Note:
Ground Plug Drains and Shut-Offs use a universal lubricant satisfactory for use with most common fluids. However the lubricant may wash out at higher pressures or with some exotic fluids.


Brass Part Number	Tube OD	Male Pipe Thread	L	M
537	1/4"	1/8"	2.00"	1.88"
632	5/16"	1/8"	2.03"	1.88"
703	3/8"	1/4"	2.06"	1.88"
