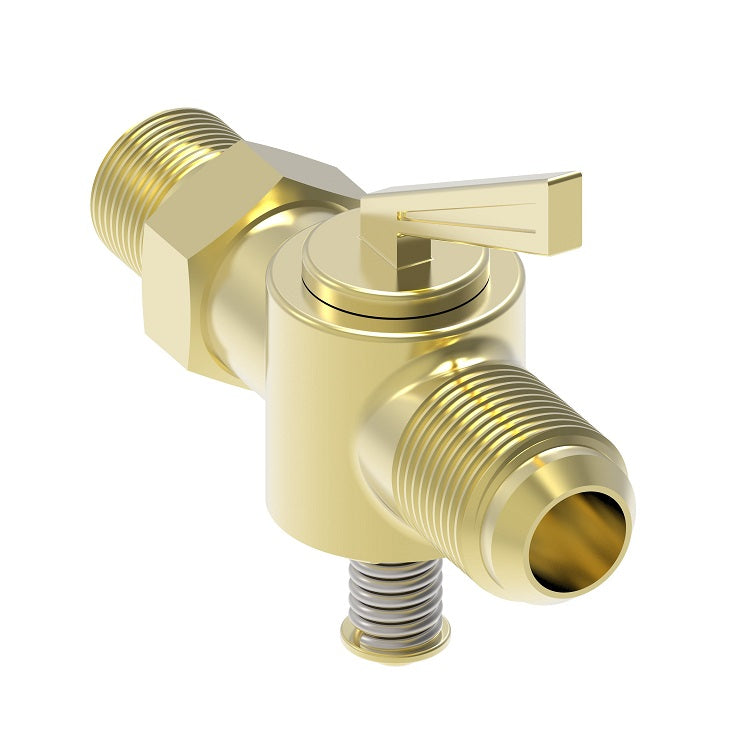

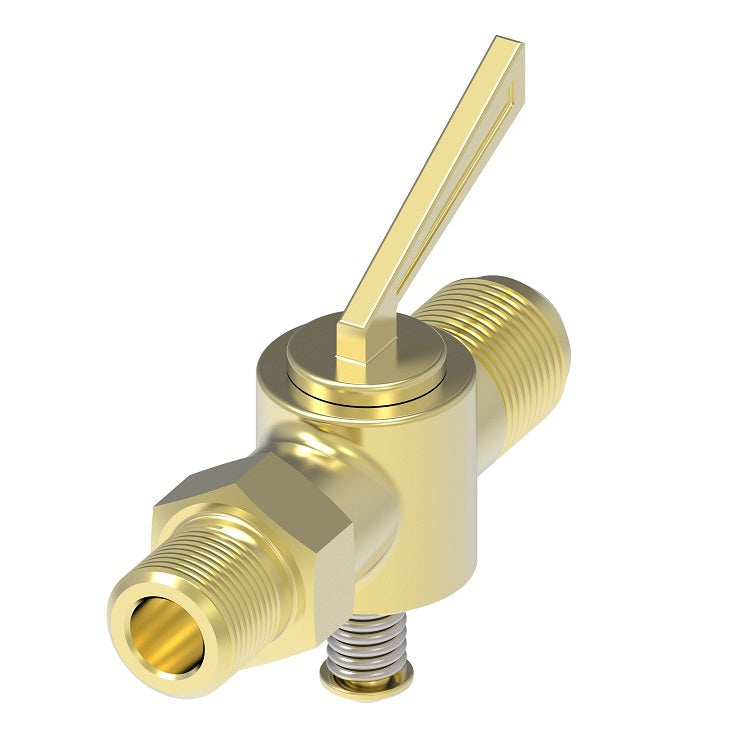

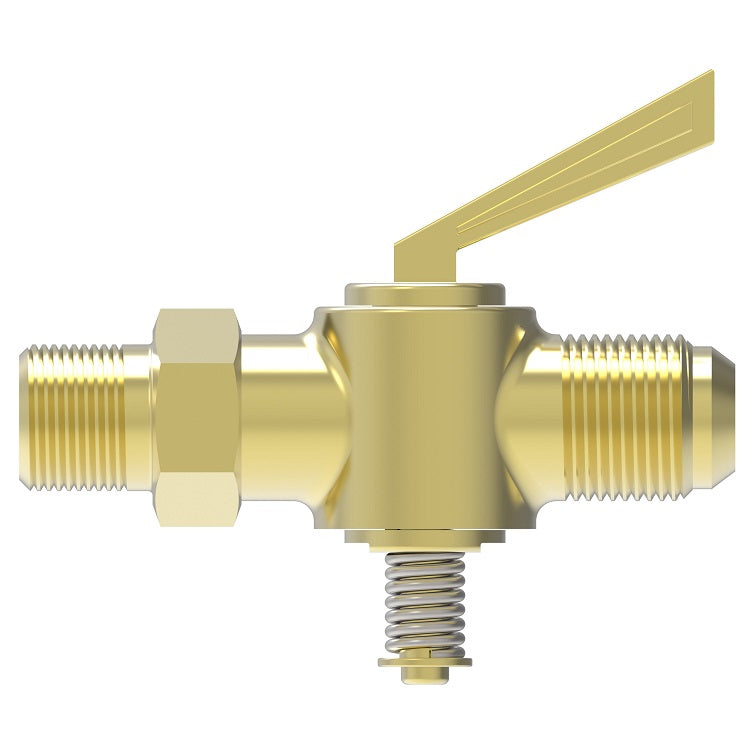

703 by Danfoss | Ground Plug Drain | SAE 45° Flare Straightway | 3/8" Male SAE 45° Flare x 1/4" Male MPT | Brass
703 by Danfoss | Ground Plug Drain | SAE 45° Flare Straightway | 3/8" Male SAE 45° Flare x 1/4" Male MPT | Brass
703 by Danfoss | Ground Plug Drain | SAE 45° Flare Straightway | 3/8" Male SAE 45° Flare x 1/4" Male MPT | Brass
703 by Danfoss | Ground Plug Drain | SAE 45° Flare Straightway | 3/8" Male SAE 45° Flare x 1/4" Male MPT | Brass

703 by Danfoss | Ground Plug Drain | SAE 45° Flare Straightway | 3/8" Male SAE 45° Flare x 1/4" Male MPT | Brass

$31.43 - $31.43
$31.43
$31.43 - $31.43
$31.43

Aeroquip® by Danfoss
Ground Plug Drain - SAE 45° Flare Double
Specifications for Variant SKU: 703 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male SAE 45 Flare, 1/4in Male Male NPT
Material(s): Brass
Applications:
  • Designed for automotive or industrial use.
Used With:
  • Copper, aluminum, steel and plastic tubing where applicable.
Material:
  • Brass bodies and handles.
Pressure:
  • 30 psi working pressure, except where noted.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • For use with plastic tubing, refer to the tubing temperature range.
Conformance:
  • Not intended for natural gas, LPG, nuclear or aircraft applications, except as noted.
Note:
  • Ground Plug Drains and Shut-Offs use a universal lubricant satisfactory for use with most common fluids. However the lubricant may wash out at higher pressures or with some exotic fluids.
Brass
Part Number 		Tube OD Male Pipe Thread L M
537 1/4" 1/8" 2.00" 1.88"
632 5/16" 1/8" 2.03" 1.88"
703 3/8" 1/4" 2.06" 1.88"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
