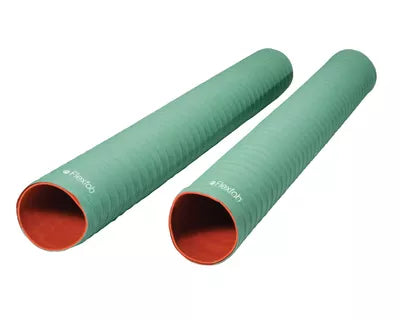

5508-250X12 by FlexFab | Series 5508 | 2-ply Wire Reinforced Coolant Hose | 2.50" x 2.92" OD | Green | 12ft Length

Save $269.25

$673.13

$673.13 - $673.13

$673.13

$403.88

$403.88 - $403.88

$403.88

Flexfab Industrial Hose | Series 5508 | Wire Reinforced Coolant Hose

WARNING: This product may take 5-7 weeks to ship.

Specifications for Variant SKU: 5508-250X12 FlexFab
Series:	5508 Series
Hose Color(s):	Green
Internal Diameter:	2.50in
Outer Diameter:	2.92in
Tubing Construction:	Silicone
Cover Construction:	Silicone
Applicable Specs & Approvals:	SAE J20 R2 Class A

Overview:
Green Cover, 2-Ply Polyester Reinforced Hose with Helical Wire Comes in 3' Lengths 12' Lengths Also Available
Construction:
Silicone hose with 2 plies of Polyester Reinforcement, with Helical Wire
Specifications:
Meets or exceeds the operating requirements of SAE J20 R1 Class A Temperature range is -65°F (-54°C) to +350°F (+177°C) Wall thickness at hose ends exclusive of wire gauge .130"/.180" Working pressure is 1/3 of the burst pressure Negative pressure is - 10 PSI
Applications:
For heavy duty pressure connections in hostile engine environments Resists hardening, cracking, cold leaks, aging, and many chemicals Ideal for extreme temperature and various pressure ranges where high performance levels are required For connections utilizing high vacuum and/or some forced curvature

Part Number (3ft & 12ft)	Inside Diameter	Outside Diameter	Burst Pressure	Max Neg.	Bend Radius	Weight
5508-050 & 5508-050X12	0.50"	0.92"	600 PSI	10 PSI	2.00"	0.17 lbs./ft
5508-062 & 5508-062X12	0.63"	1.05"	600 PSI	10 PSI	2.25"	0.21 lbs./ft
5508-075 & 5508-075X12	0.75"	1.17"	600 PSI	10 PSI	2.50"	0.23 lbs./ft
5508-087 & 5508-087X12	0.88"	1.30"	550 PSI	10 PSI	2.75"	0.26 lbs./ft
5508-100 & 5508-100X12	1.00"	1.42"	550 PSI	10 PSI	3.00"	0.30 lbs./ft
5508-125 & 5508-125X12	1.25"	1.67"	525 PSI	10 PSI	3.50"	0.36 lbs./ft
5508-150 & 5508-150X12	1.50"	1.92"	500 PSI	10 PSI	4.00"	0.43 lbs./ft
5508-175 & 5508-175X12	1.75"	2.17"	475 PSI	10 PSI	4.50"	0.51 lbs./ft
5508-200 & 5508-200X12	2.00"	2.42"	450 PSI	10 PSI	5.00"	0.56 lbs./ft
5508-225 & 5508-225X12	2.25"	2.67"	400 PSI	10 PSI	5.50"	0.65 lbs./ft
5508-250 & 5508-250X12	2.50"	2.92"	350 PSI	10 PSI	6.00"	0.74 lbs./ft
5508-275 & 5508-275X12	2.75"	3.17"	325 PSI	10 PSI	6.50"	0.79 lbs./ft
5508-300 & 5508-300X12	3.00"	3.42"	300 PSI	10 PSI	7.00"	0.85 lbs./ft
5508-350 & 5508-350X12	3.50"	3.92"	275 PSI	10 PSI	8.00"	1.09 lbs./ft
5508-400 & 5508-400X12	4.00"	4.42"	250 PSI	10 PSI	9"	1.19 lbs./ft
5508-600 & N/A	6.00"	6.42"	125 PSI	10 PSI	13.00"	1.84 lbs./ft

*Specifications for reference only. Specific test data available on request.

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
