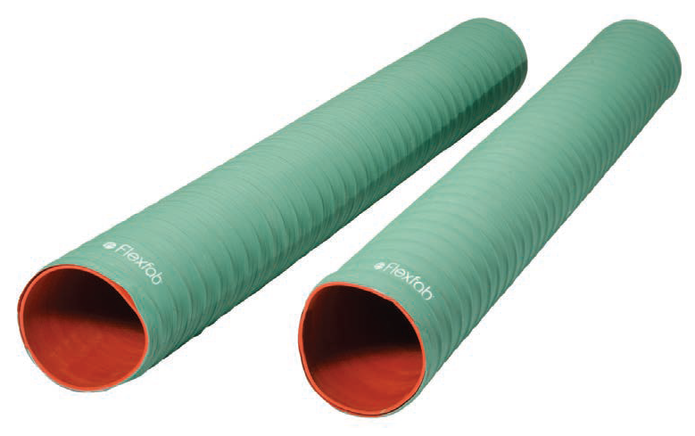

5508-600 FlexFab Series 5508 2-Ply Wire Reinforced Coolant Hose - 6.00" ID - 6.42" OD - Green - 3ft

5508-600 by FlexFab | Series 5508 | 2-ply Wire Reinforced Coolant Hose | 6.00" ID | 6.42" OD | Green | 3ft Length

Save $118.37 Save $118.37
$295.92
$295.92 - $295.92
$295.92
$177.55
$177.55 - $177.55
$177.55

Flexfab Industrial Hose - Series 5508 - Wire Reinforced Coolant Hose

Package Quantity: 3 FT

Specifications for Variant SKU: 5508-600 Flexfab
Series: Series 5508
Hose Color(s): Green
Internal Diameter: 6.00in
Outer Diameter: 6.42in
Tubing Construction: Silicone
Cover Construction: Silicone
Applicable Specs & Approvals: SAE J20 R2 Class A
Overview:
  • Green Cover, 2-Ply Polyester Reinforced Hose with Helical Wire
  • Comes in 3' Lengths
  • 12' Lengths Also Available
Construction:
  • Silicone hose with 2 plies of Polyester Reinforcement, with Helical Wire
Specifications:
  • Meets or exceeds the operating requirements of SAE J20 R1 Class A
  • Temperature range is -65°F (-54°C) to +350°F (+177°C)
  • Wall thickness at hose ends exclusive of wire gauge .130"/.180"
  • Working pressure is 1/3 of the burst pressure
  • Negative pressure is - 10 PSI
Applications:
  • For heavy duty pressure connections in hostile engine environments
  • Resists hardening, cracking, cold leaks, aging, and many chemicals
  • Ideal for extreme temperature and various pressure ranges where high performance levels are required
  • For connections utilizing high vacuum and/or some forced curvature
Part Number (3ft & 12ft) Inside Diameter Outside Diameter Burst Pressure Max Neg. Bend Radius Weight
5508-050 & 5508-050X12 0.50" 0.92" 600 PSI 10 PSI 2.00" 0.17 lbs./ft
5508-062 & 5508-062X12 0.63" 1.05" 600 PSI 10 PSI 2.25" 0.21 lbs./ft
5508-075 & 5508-075X12 0.75" 1.17" 600 PSI 10 PSI 2.50" 0.23 lbs./ft
5508-087 & 5508-087X12 0.88" 1.30" 550 PSI 10 PSI 2.75" 0.26 lbs./ft
5508-100 & 5508-100X12 1.00" 1.42" 550 PSI 10 PSI 3.00" 0.30 lbs./ft
5508-125 & 5508-125X12 1.25" 1.67" 525 PSI 10 PSI 3.50" 0.36 lbs./ft
5508-150 & 5508-150X12 1.50" 1.92" 500 PSI 10 PSI 4.00" 0.43 lbs./ft
5508-175 & 5508-175X12 1.75" 2.17" 475 PSI 10 PSI 4.50" 0.51 lbs./ft
5508-200 & 5508-200X12 2.00" 2.42" 450 PSI 10 PSI 5.00" 0.56 lbs./ft
5508-225 & 5508-225X12 2.25" 2.67" 400 PSI 10 PSI 5.50" 0.65 lbs./ft
5508-250 & 5508-250X12 2.50" 2.92" 350 PSI 10 PSI 6.00" 0.74 lbs./ft
5508-275 & 5508-275X12 2.75" 3.17" 325 PSI 10 PSI 6.50" 0.79 lbs./ft
5508-300 & 5508-300X12 3.00" 3.42" 300 PSI 10 PSI 7.00" 0.85 lbs./ft
5508-350 & 5508-350X12 3.50" 3.92" 275 PSI 10 PSI 8.00" 1.09 lbs./ft
5508-400 & 5508-400X12 4.00" 4.42" 250 PSI 10 PSI 9" 1.19 lbs./ft
5508-600 & N/A 6.00" 6.42" 125 PSI 10 PSI 13.00" 1.84 lbs./ft
*Specifications for reference only. Specific test data available on request.
