55110-4-1/8" AIGNEP | 55/56 Series | Swivel 90° Elbow | 4mm Tube x 1/8" Swift-Fit Male Universal Thread | Pack of 10

55110-4-1/8 by AIGNEP | 55/56 Series | Swivel | 4mm Tube x 1/8" Swift-Fit Male Universal Thread | 90° Elbow | Pack of 10

Save $9.29

$23.22

$23.22 - $23.22

$23.22

$13.93

$13.93 - $13.93

$13.93

Package Quantity: 10 ea

Specifications for Variant SKU: 55110-4-1/8 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	90 Degree
Ends Configuration:	4mm Push-to-Connect, 1/8in Male Swift-Fit
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Male Elbow Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

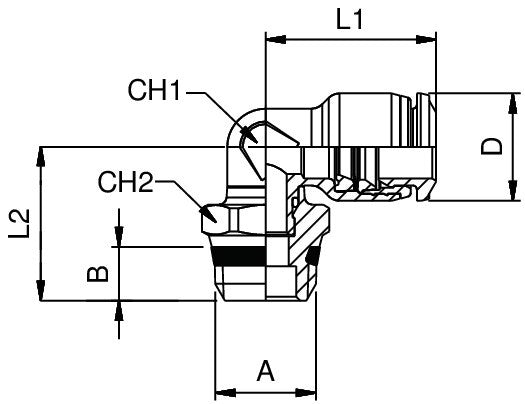

Product Number	Tube	A	B	L1	L2	CH1	CH2	D
55110-4-1/8	4 mm	1/8"	5.5 mm	16.5 mm	16.5 mm	7 mm	13 mm	10 mm
55110-4-1/4	4 mm	1/4"	7 mm	16.5 mm	18 mm	7 mm	15 mm	10 mm
55110-5-1/8	5 mm	1/8"	5.5 mm	20 mm	17.5 mm	9 mm	13 mm	12 mm
55110-6-1/8	6 mm	1/8"	5.5 mm	20.5 mm	17.5 mm	9 mm	13 mm	12 mm
55110-6-1/4	6 mm	1/4"	7 mm	20.5 mm	18.9 mm	9 mm	15 mm	12 mm
55110-6-3/8	6 mm	3/8"	7.5 mm	20.5 mm	20 mm	9 mm	17 mm	12 mm
55110-6-1/2	6 mm	1/2"	9 mm	20.5 mm	22 mm	9 mm	21 mm	12 mm
55110-8-1/8	8 mm	1/8"	5.5 mm	22 mm	18.5 mm	10 mm	13 mm	14 mm
55110-8-1/4	8 mm	1/4"	7 mm	22 mm	20 mm	10 mm	15 mm	14 mm
55110-8-3/8	8 mm	3/8"	7.5 mm	22 mm	20.5 mm	10 mm	17 mm	14 mm
55110-8-1/2	8 mm	1/2"	9 mm	22 mm	23 mm	10 mm	21 mm	14 mm
55110-10-1/4	10 mm	1/4"	7 mm	26.5 mm	21.8 mm	13 mm	16 mm	17 mm
55110-10-3/8	10 mm	3/8"	7.5 mm	26.5 mm	21.8 mm	13 mm	17 mm	17 mm
55110-10-1/2	10 mm	1/2"	9 mm	26.5 mm	24.3 mm	13 mm	21 mm	17 mm
55110-12-1/4	12 mm	1/4"	7 mm	30 mm	23.1 mm	16 mm	16 mm	20 mm
55110-12-3/8	12 mm	3/8"	7.5 mm	30 mm	23.1 mm	16 mm	17 mm	20 mm
55110-12-1/2	12 mm	1/2"	9 mm	30 mm	25.6 mm	16 mm	21 mm	20 mm
55110-14-3/8	14 mm	3/8"	7.5 mm	31 mm	26.5 mm	18 mm	20 mm	21 mm
55110-14-1/2	14 mm	1/2"	9 mm	31 mm	27 mm	18 mm	21 mm	21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
