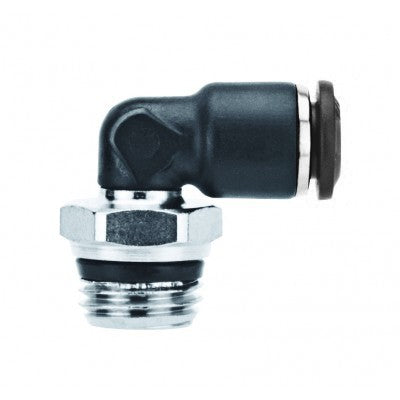

55110-8-1/8" AIGNEP | 55/56 Series | Swivel 90° Elbow | 8mm Tube x 1/8" Swift-Fit Male | Pack of 10
55110-8-1/8 by AIGNEP | 55/56 Series | Swivel | 8mm Tube x 1/8" Swift-Fit Male | 90° Elbow | Pack of 10
55110-8-1/8" AIGNEP | 55/56 Series | Swivel 90° Elbow | 8mm Tube x 1/8" Swift-Fit Male | Pack of 10

55110-8-1/8 by AIGNEP | 55/56 Series | Swivel | 8mm Tube x 1/8" Swift-Fit Male | 90° Elbow | Pack of 10

Save $9.58 Save $9.58
$23.95
$23.95 - $23.95
$23.95
$14.37
$14.37 - $14.37
$14.37

Package Quantity: 10 ea

Specifications for Variant SKU: 55110-8-1/8 AIGNEP | 10 |
Series: 55/56 Series
Shape (Orientation): 90 Degree
Ends Configuration: 8mm Push-to-Connect, 1/8in Male Swift-Fit
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

Swivel Male Elbow Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

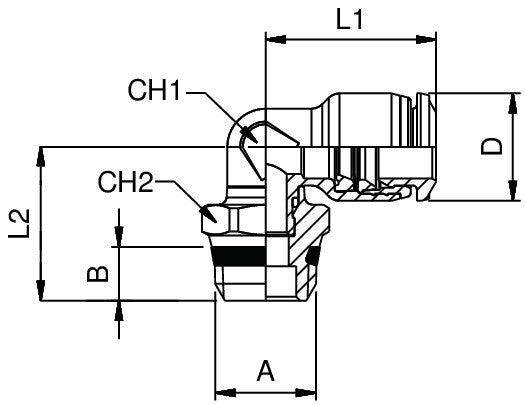

Product Number Tube A B L1 L2 CH1 CH2 D
55110-4-1/8 4 mm 1/8" 5.5 mm 16.5 mm 16.5 mm 7 mm 13 mm 10 mm
55110-4-1/4 4 mm 1/4" 7 mm 16.5 mm 18 mm 7 mm 15 mm 10 mm
55110-5-1/8 5 mm 1/8" 5.5 mm 20 mm 17.5 mm 9 mm 13 mm 12 mm
55110-6-1/8 6 mm 1/8" 5.5 mm 20.5 mm 17.5 mm 9 mm 13 mm 12 mm
55110-6-1/4 6 mm 1/4" 7 mm 20.5 mm 18.9 mm 9 mm 15 mm 12 mm
55110-6-3/8 6 mm 3/8" 7.5 mm 20.5 mm 20 mm 9 mm 17 mm 12 mm
55110-6-1/2 6 mm 1/2" 9 mm 20.5 mm 22 mm 9 mm 21 mm 12 mm
55110-8-1/8 8 mm 1/8" 5.5 mm 22 mm 18.5 mm 10 mm 13 mm 14 mm
55110-8-1/4 8 mm 1/4" 7 mm 22 mm 20 mm 10 mm 15 mm 14 mm
55110-8-3/8 8 mm 3/8" 7.5 mm 22 mm 20.5 mm 10 mm 17 mm 14 mm
55110-8-1/2 8 mm 1/2" 9 mm 22 mm 23 mm 10 mm 21 mm 14 mm
55110-10-1/4 10 mm 1/4" 7 mm 26.5 mm 21.8 mm 13 mm 16 mm 17 mm
55110-10-3/8 10 mm 3/8" 7.5 mm 26.5 mm 21.8 mm 13 mm 17 mm 17 mm
55110-10-1/2 10 mm 1/2" 9 mm 26.5 mm 24.3 mm 13 mm 21 mm 17 mm
55110-12-1/4 12 mm 1/4" 7 mm 30 mm 23.1 mm 16 mm 16 mm 20 mm
55110-12-3/8 12 mm 3/8" 7.5 mm 30 mm 23.1 mm 16 mm 17 mm 20 mm
55110-12-1/2 12 mm 1/2" 9 mm 30 mm 25.6 mm 16 mm 21 mm 20 mm
55110-14-3/8 14 mm 3/8" 7.5 mm 31 mm 26.5 mm 18 mm 20 mm 21 mm
55110-14-1/2 14 mm 1/2" 9 mm 31 mm 27 mm 18 mm 21 mm 21 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
