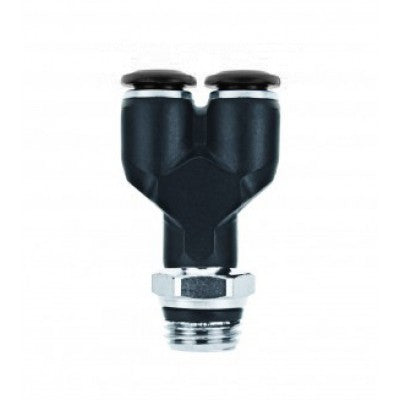

55340-4-1/8" AIGNEP | 55/56 Series | Swivel Y Manifold | 4mm Tube x 1/8" Swift-Fit Male Universal Thread | Pack of 10
55340-4-1/8 by AIGNEP | 55/56 Series | Swivel Manifold | 4mm Tube x 1/8" Swift-Fit Male Universal Thread | Y | Pack of 10
55340-4-1/8" AIGNEP | 55/56 Series | Swivel Y Manifold | 4mm Tube x 1/8" Swift-Fit Male Universal Thread | Pack of 10

55340-4-1/8 by AIGNEP | 55/56 Series | Swivel Manifold | 4mm Tube x 1/8" Swift-Fit Male Universal Thread | Y | Pack of 10

Save $27.28 Save $27.28
$68.20
$68.20 - $68.20
$68.20
$40.92
$40.92 - $40.92
$40.92

Package Quantity: 10 ea

Specifications for Variant SKU: 55340-4-1/8 AIGNEP | 10 |
Series: 55/56 Series
Shape (Orientation): Y
Ends Configuration: 4mm Push-to-Connect, 1/8in Male Swift-Fit
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

4 Position Y SWIFTFIT Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

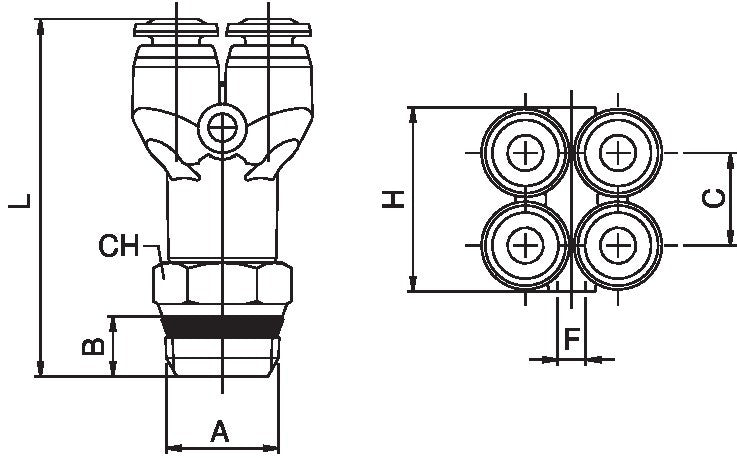

Product Number Tube A B C L F CH H
55340-4-1/8 4 mm 1/8" 5.5 mm 11 mm 39.5 mm 3.3 mm 11 mm 21.5 mm
55340-4-1/4 4 mm 1/4" 7 mm 11 mm 42 mm 3.3 mm 14 mm 21.5 mm
55340-6-1/8 6 mm 1/8" 5.5 mm 13.5 mm 46.5 mm 3.3 mm 11 mm 26.8 mm
55340-6-1/4 6 mm 1/4" 7 mm 13.5 mm 48 mm 3.3 mm 14 mm 26.8 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
