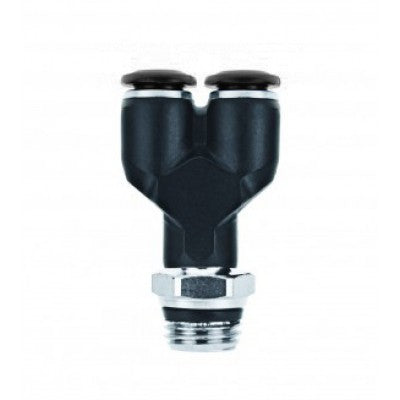

55340-6-1/4" AIGNEP | 55/56 Series | Swivel Y Manifold | 6mm Tube x 1/4" Swift-Fit Male Universal Thread | Pack of 10

55340-6-1/4 by AIGNEP | 55/56 Series | Swivel Manifold | 6mm Tube x 1/4" Swift-Fit Male Universal Thread | Y | Pack of 10

Save $28.85

$72.12

$72.12 - $72.12

$72.12

$43.27

$43.27 - $43.27

$43.27

Package Quantity: 10 ea

Specifications for Variant SKU: 55340-6-1/4 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Y
Ends Configuration:	6mm Push-to-Connect, 1/4in Male Swift-Fit
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

4 Position Y SWIFTFIT Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

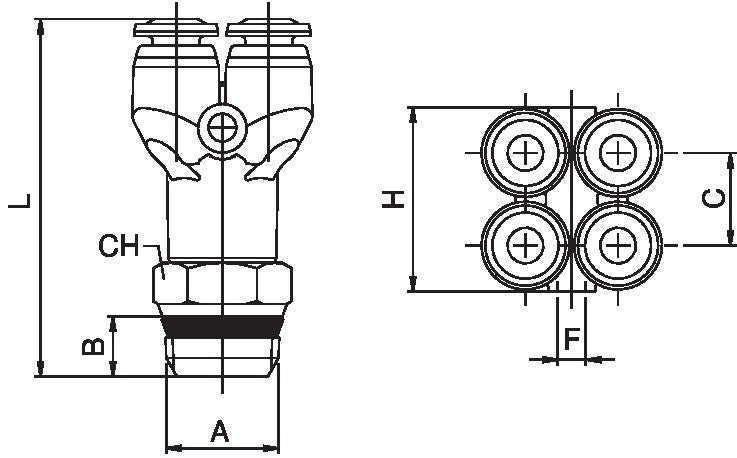

Product Number	Tube	A	B	C	L	F	CH	H
55340-4-1/8	4 mm	1/8"	5.5 mm	11 mm	39.5 mm	3.3 mm	11 mm	21.5 mm
55340-4-1/4	4 mm	1/4"	7 mm	11 mm	42 mm	3.3 mm	14 mm	21.5 mm
55340-6-1/8	6 mm	1/8"	5.5 mm	13.5 mm	46.5 mm	3.3 mm	11 mm	26.8 mm
55340-6-1/4	6 mm	1/4"	7 mm	13.5 mm	48 mm	3.3 mm	14 mm	26.8 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
