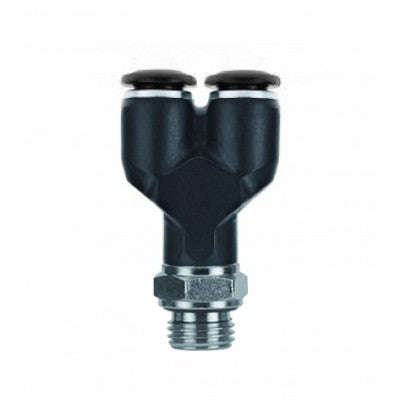

55345-4-1/4" AIGNEP | 55/56 Series | Swivel Y | Manifold 4mm Tube x 1/4" BSPP Male | Pack of 10

55345-4-1/4 by AIGNEP | 55/56 Series | Swivel | Manifold 4mm Tube x 1/4" BSPP Male | Y | Pack of 10

Save $28.45

$71.13

$71.13 - $71.13

$71.13

$42.68

$42.68 - $42.68

$42.68

Package Quantity: 10 ea

Specifications for Variant SKU: 55345-4-1/4 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Y
Ends Configuration:	4mm Push-to-Connect, 1/4in Male BSPP, 4mm Push-to-Connect, Some Ends Match
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

4 Position Y Threaded Composite - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

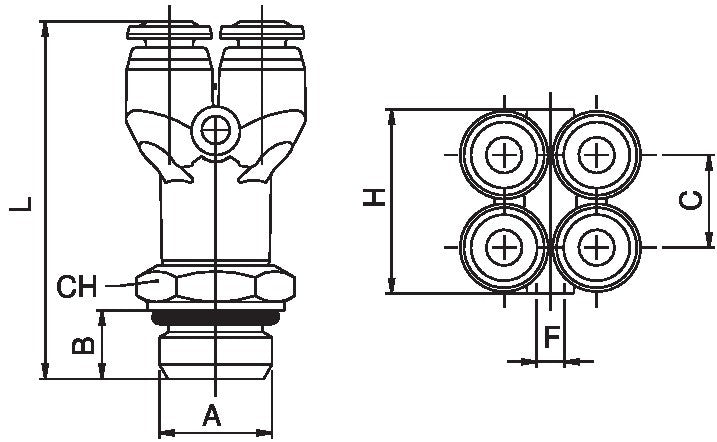

Product Number	Tube	A	B	C	L	F	CH	H
55345-4-1/8	4 mm	1/8"	6 mm	10.8 mm	40 mm	3.3 mm	13 mm	21.5 mm
55345-4-1/4	4 mm	1/4"	8 mm	10.8 mm	42 mm	3.3 mm	16 mm	21.5 mm
55345-6-1/8	6 mm	1/8"	6 mm	13.3 mm	47 mm	3.3 mm	13 mm	26.8 mm
55345-6-1/4	6 mm	1/4"	8 mm	13.3 mm	49 mm	3.3 mm	16 mm	26.8 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
