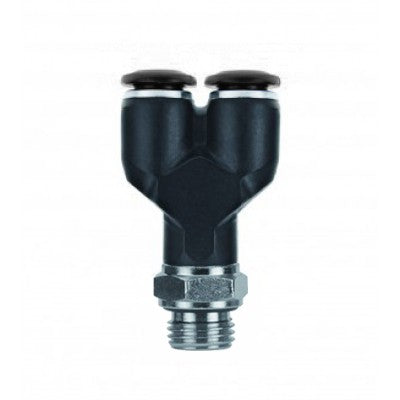

55345-4-1/8" AIGNEP | 55/56 Series | Swivel Y | Manifold 4mm Tube x 1/8" BSPP Male | Pack of 10
55345-4-1/8 by AIGNEP | 55/56 Series | Swivel | Manifold 4mm Tube x 1/8" BSPP Male | Y | Pack of 10
55345-4-1/8" AIGNEP | 55/56 Series | Swivel Y | Manifold 4mm Tube x 1/8" BSPP Male | Pack of 10

55345-4-1/8 by AIGNEP | 55/56 Series | Swivel | Manifold 4mm Tube x 1/8" BSPP Male | Y | Pack of 10

Save $26.89 Save $26.89
$67.22
$67.22 - $67.22
$67.22
$40.33
$40.33 - $40.33
$40.33

Package Quantity: 10 ea

Specifications for Variant SKU: 55345-4-1/8 AIGNEP | 10 |
Series: 55/56 Series
Shape (Orientation): Y
Ends Configuration: 4mm Push-to-Connect, 1/8in Male BSPP, 4mm Push-to-Connect, Some Ends Match
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

4 Position Y Threaded Composite - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

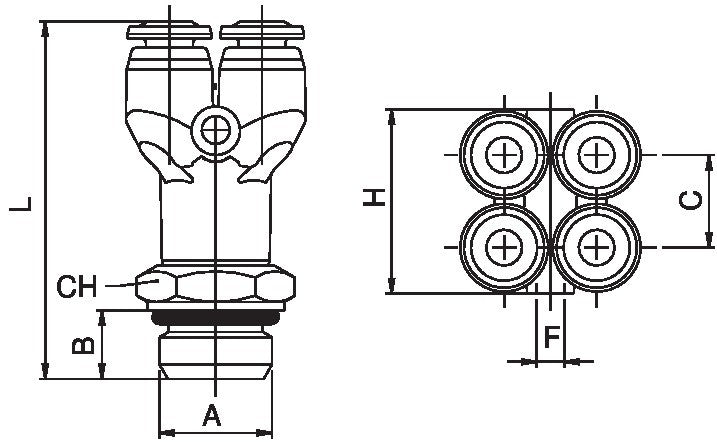

Product Number Tube A B C L F CH H
55345-4-1/8 4 mm 1/8" 6 mm 10.8 mm 40 mm 3.3 mm 13 mm 21.5 mm
55345-4-1/4 4 mm 1/4" 8 mm 10.8 mm 42 mm 3.3 mm 16 mm 21.5 mm
55345-6-1/8 6 mm 1/8" 6 mm 13.3 mm 47 mm 3.3 mm 13 mm 26.8 mm
55345-6-1/4 6 mm 1/4" 8 mm 13.3 mm 49 mm 3.3 mm 16 mm 26.8 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
