55420-1/2" AIGNEP | Banjo Series | Double Banjo Stem | Male 1/2" BSPP
55420-1/2 by AIGNEP | Banjo Series | Double Banjo Stem | Male 1/2" BSPP
55420-1/2" AIGNEP | Banjo Series | Double Banjo Stem | Male 1/2" BSPP

55420-1/2 by AIGNEP | Banjo Series | Double Banjo Stem | Male 1/2" BSPP

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Specifications for Variant SKU: 55420-1/2 AIGNEP
Series: Banjo Series
Shape (Orientation): Banjo
Ends Configuration: 1/2in Male BSPP, 1/2in Male Banjo
Material(s): Nickel-Plated Brass

Double Banjo Stem

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Type: BSPP

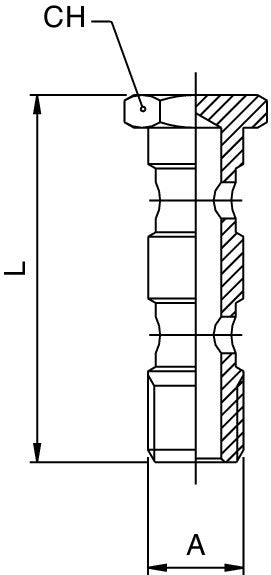

Product Number A L CH
55420-1/8 1/8" 44.5 mm 14 mm
55420-1/4 1/4" 50.5 mm 17 mm
55420-3/8 3/8" 58 mm 19 mm
55420-1/2 1/2" 68 mm 24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
