55420-1/4" AIGNEP | Banjo Series | Double Banjo Stem | Male 1/4" BSPP

55420-1/4 by AIGNEP | Banjo Series | Double Banjo Stem | Male 1/4" BSPP

Name: 55420-1/4 by AIGNEP | Banjo Series | Double Banjo Stem | Male 1/4" BSPP
Brand: AIGNEP
SKU: 55420-1/4 AIGNEP
Price: 2.11 USD
Availability: InStock

Save $1.41

$3.52

$3.52 - $3.52

$3.52

$2.11

$2.11 - $2.11

$2.11

Specifications for Variant SKU: 55420-1/4 AIGNEP
Series:	Banjo Series
Shape (Orientation):	Banjo
Ends Configuration:	1/4in Male BSPP, 1/4in Male Banjo
Material(s):	Nickel-Plated Brass

Double Banjo Stem

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Type: BSPP

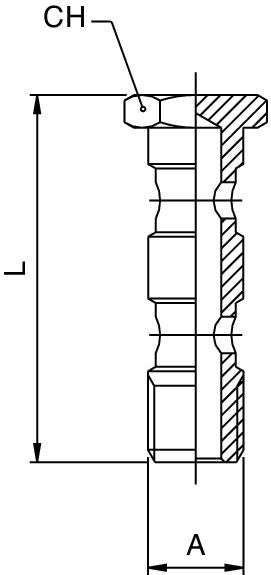

A	L	CH
55420-1/8	1/8"	44.5 mm	14 mm
55420-1/4	1/4"	50.5 mm	17 mm
55420-3/8	3/8"	58 mm	19 mm
55420-1/2	1/2"	68 mm	24 mm
