55920-5-1/8 by AIGNEP | Functional (Flow Controls) Series | Needle Valve | 5mm Tube x 1/8" Swift-Fit Male
55920-5-1/8 by AIGNEP | Functional (Flow Controls) Series | Needle Valve | 5mm Tube x 1/8" Swift-Fit Male

55920-5-1/8 by AIGNEP | Functional (Flow Controls) Series | Needle Valve | 5mm Tube x 1/8" Swift-Fit Male

Save $5.03 Save $5.03
$12.58
$12.58 - $12.58
$12.58
$7.55
$7.55 - $7.55
$7.55
Specifications for Variant SKU: 55920-5-1/8 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): 90 Degree
Ends Configuration: 5mm Push-to-Connect, 1/8in Male Swift-Fit
Material(s): Nylon
Seal Material(s): Buna-N/Nitrile Rubber

Metric Tube Needle Valve

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

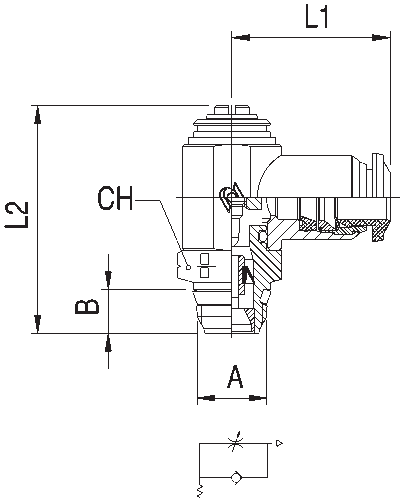

Product Number Tube A B L1 L2 CH Code
55920-4-M5 4 mm M5 4 mm 19.5 mm 29.5 mm 8 mm B
55920-4-1/8 4 mm 1/8" 5.5 mm 21.5 mm 31 mm 14 mm B
55920-5-M5 5 mm M5 4 mm 20.5 mm 29.5 mm 8 mm B
55920-5-1/8 5 mm 1/8" 5.5 mm 22.5 mm 31 mm 14 mm B
55920-5-1/4 5 mm 1/4" 7 mm 25 mm 36.5 mm 17 mm B
55920-6-M5 6 mm M5 4 mm 21 mm 29.5 mm 8 mm B
55920-6-1/8 6 mm 1/8" 5.5 mm 23 mm 31 mm 14 mm B
55920-6-1/4 6 mm 1/4" 7 mm 25.5 mm 36.5 mm 17 mm B
55920-8-1/8 8 mm 1/8" 5.5 mm 23.5 mm 31 mm 14 mm B
55920-8-1/4 8 mm 1/4" 7 mm 26 mm 36.5 mm 17 mm B
55920-8-3/8 8 mm 3/8" 8.5 mm 27.5 mm 42.5 mm 20 mm B
55920-10-3/8 10 mm 3/8" 8.5 mm 30.5 mm 42.5 mm 20 mm B
55920-12-3/8 12 mm 3/8" 8.5 mm 32.5 mm 42.5 mm 20 mm B
55920-12-1/2 12 mm 1/2" 10 mm 35 mm 47 mm 24 mm B
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
