55920-6-1/4 by AIGNEP | Functional (Flow Controls) Series | Needle Valve | 6mm Tube x 1/4" Swift-Fit Male

Name: 55920-6-1/4 by AIGNEP | Functional (Flow Controls) Series | Needle Valve | 6mm Tube x 1/4" Swift-Fit Male
Brand: AIGNEP
SKU: 55920-6-1/4 AIGNEP
Price: 7.93 USD
Availability: InStock

Save $0.08

$8.01

$8.01 - $8.01

$8.01

$7.93

$7.93 - $7.93

$7.93

Quantity

Specifications for Variant SKU: 55920-6-1/4 AIGNEP
Series:	Functional (Flow Controls) Series
Shape (Orientation):	90 Degree
Ends Configuration:	6mm Push-to-Connect, 1/4in Male Swift-Fit
Material(s):	Nylon
Seal Material(s):	Buna-N/Nitrile Rubber

Metric Tube Needle Valve

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

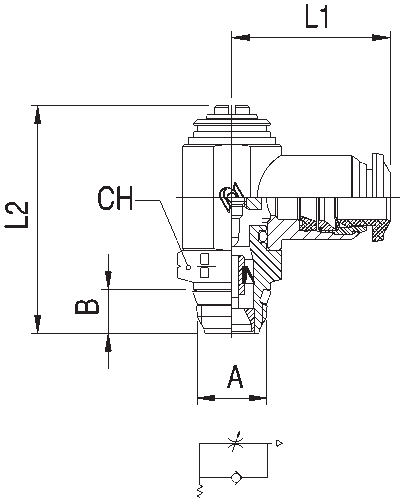

Product Number	Tube	A	B	L1	L2	CH	Code
55920-4-M5	4 mm	M5	4 mm	19.5 mm	29.5 mm	8 mm	B
55920-4-1/8	4 mm	1/8"	5.5 mm	21.5 mm	31 mm	14 mm	B
55920-5-M5	5 mm	M5	4 mm	20.5 mm	29.5 mm	8 mm	B
55920-5-1/8	5 mm	1/8"	5.5 mm	22.5 mm	31 mm	14 mm	B
55920-5-1/4	5 mm	1/4"	7 mm	25 mm	36.5 mm	17 mm	B
55920-6-M5	6 mm	M5	4 mm	21 mm	29.5 mm	8 mm	B
55920-6-1/8	6 mm	1/8"	5.5 mm	23 mm	31 mm	14 mm	B
55920-6-1/4	6 mm	1/4"	7 mm	25.5 mm	36.5 mm	17 mm	B
55920-8-1/8	8 mm	1/8"	5.5 mm	23.5 mm	31 mm	14 mm	B
55920-8-1/4	8 mm	1/4"	7 mm	26 mm	36.5 mm	17 mm	B
55920-8-3/8	8 mm	3/8"	8.5 mm	27.5 mm	42.5 mm	20 mm	B
55920-10-3/8	10 mm	3/8"	8.5 mm	30.5 mm	42.5 mm	20 mm	B
55920-12-3/8	12 mm	3/8"	8.5 mm	32.5 mm	42.5 mm	20 mm	B
55920-12-1/2	12 mm	1/2"	10 mm	35 mm	47 mm	24 mm	B

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
