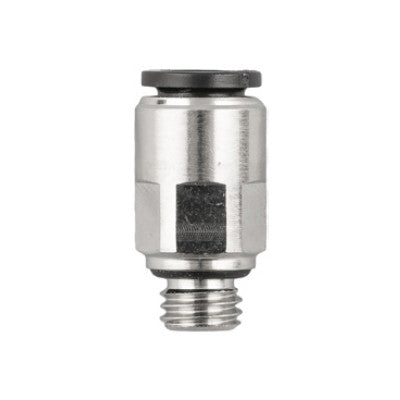

56020-4-M3 AIGNEP | 56 Series | Mini Straight Connector | Male 4mm Tube x M3 BSPP Male | Pack of 10

56020-4-M3 by AIGNEP | 56 Series | Mini Connector | Male 4mm Tube x M3 BSPP Male | Straight | Pack of 10

Save $0.18

$18.22

$18.22 - $18.22

$18.22

$18.04

$18.04 - $18.04

$18.04

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 56020-4-M3 AIGNEP \| 10 \|
Series:	56 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Mini Straight Male - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPP

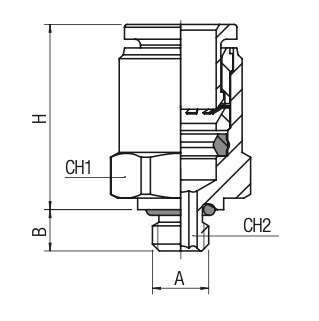

Product Number	Tube	A	B	H	CH1	CH2
56020-2-M3	2 mm	M3	3 mm	11 mm	6 mm	1.5 mm
56020-2-M5	2 mm	M5	4 mm	9 mm	7 mm	1.5 mm
56020-3-M3	3 mm	M3	3 mm	11 mm	6 mm	1.5 mm
56020-3-M5	3 mm	M5	4 mm	10 mm	7 mm	2 mm
56020-4-M3	4 mm	M3	3 mm	14.5 mm	8 mm	-
56020-6-M5	6 mm	M5	3.6 mm	16 mm	11 mm	2.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
