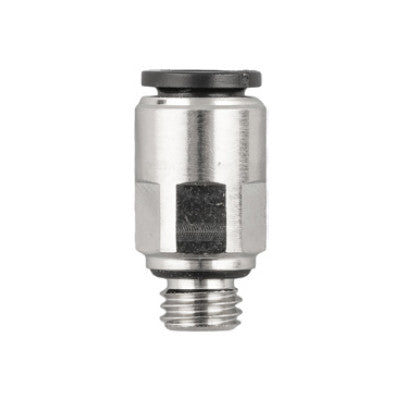

56020-6-M5 AIGNEP | 56 Series | Mini Straight Connector | Male 6mm Tube x M5 Male | Pack of 10
56020-6-M5 by AIGNEP | 56 Series | Mini Connector | Male 6mm Tube x M5 Male | Straight | Pack of 10
56020-6-M5 AIGNEP | 56 Series | Mini Straight Connector | Male 6mm Tube x M5 Male | Pack of 10

56020-6-M5 by AIGNEP | 56 Series | Mini Connector | Male 6mm Tube x M5 Male | Straight | Pack of 10

Save $10.66 Save $10.66
$26.65
$26.65 - $26.65
$26.65
$15.99
$15.99 - $15.99
$15.99

Package Quantity: 10 ea

Specifications for Variant SKU: 56020-6-M5 AIGNEP | 10 |
Series: 56 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Mini Straight Male - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPP
Product Number Tube A B H CH1 CH2
56020-2-M3 2 mm M3 3 mm 11 mm 6 mm 1.5 mm
56020-2-M5 2 mm M5 4 mm 9 mm 7 mm 1.5 mm
56020-3-M3 3 mm M3 3 mm 11 mm 6 mm 1.5 mm
56020-3-M5 3 mm M5 4 mm 10 mm 7 mm 2 mm
56020-4-M3 4 mm M3 3 mm 14.5 mm 8 mm -
56020-6-M5 6 mm M5 3.6 mm 16 mm 11 mm 2.5 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
