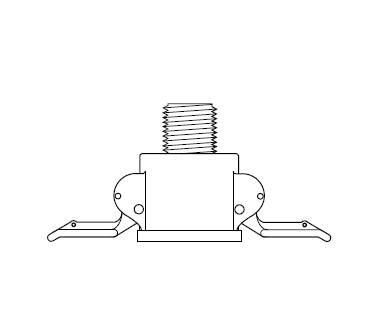

5610444 by NewAge | Cam and Groove Fitting | Type B | Coupler x 1" Male NPT | EPDM Seal | Polypropylene

Save $8.38

$20.95

$20.95 - $20.95

$20.95

$12.57

$12.57 - $12.57

$12.57

PRODUCT DESCRIPTION

NewAge Industries - Plastic Cam & Groove Fittings - Polypropylene - Type B - Coupler x Male MNPT

Specifications for Variant SKU: 5610444 NewAge
Shape (Orientation):	Straight
Ends Configuration:	1in Female Cam & Groove, 1in Male NPT
Material(s):	Polypropylene
Seal Material(s):	EPDM

Features:
Similar properties to nylon yet more resistant to most acids than nylon couplings Made to MIL-C-27487 dimensions Made in the USA Material: Glass-fiber reinforced nylon -- black in color Standard Gasket: EPDM Handle: 304L Stainless Steel Pin: 302 Stainless Steel Temperature Range: 10°F to 180°F Working Pressure: 3/8" thru 1": 125 psi 1-1/4" thru 2": 100 psi 3": 75 psi
Notes:
On 1/4", 3/8", 1/2", and 5/8" sizes, the coupler and insert portions are to the 3/4" standard. On the 1-1/4" size, the coupler and insert portions are to the 1-1/2" standard.

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Part Number	Dimensions (Thread Size)
5610388	1/2" Male MNPT
5610416	3/4" Male MNPT
5610444	1" Male MNPT
5610500	1-1/2" Male MNPT
5610528	2" Male MNPT

* Limited stock item; lead times and minimums may apply -- contact support.
