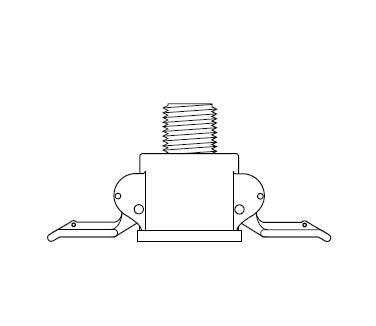

5610528 by NewAge | Cam and Groove Fitting | Type B | Coupler x 2" Male NPT | EPDM Seal | Polypropylene

Save $12.02

$30.05

$30.05 - $30.05

$30.05

$18.03

$18.03 - $18.03

$18.03

PRODUCT DESCRIPTION

NewAge Industries - Plastic Cam & Groove Fittings - Polypropylene - Type B - Coupler x Male MNPT

Specifications for Variant SKU: 5610528 NewAge
Shape (Orientation):	Straight
Ends Configuration:	2in Female Cam & Groove, 2in Male NPT
Material(s):	Polypropylene
Seal Material(s):	EPDM

Features:
Similar properties to nylon yet more resistant to most acids than nylon couplings Made to MIL-C-27487 dimensions Made in the USA Material: Glass-fiber reinforced nylon -- black in color Standard Gasket: EPDM Handle: 304L Stainless Steel Pin: 302 Stainless Steel Temperature Range: 10°F to 180°F Working Pressure: 3/8" thru 1": 125 psi 1-1/4" thru 2": 100 psi 3": 75 psi
Notes:
On 1/4", 3/8", 1/2", and 5/8" sizes, the coupler and insert portions are to the 3/4" standard. On the 1-1/4" size, the coupler and insert portions are to the 1-1/2" standard.

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Part Number	Dimensions (Thread Size)
5610388	1/2" Male MNPT
5610416	3/4" Male MNPT
5610444	1" Male MNPT
5610500	1-1/2" Male MNPT
5610528	2" Male MNPT

* Limited stock item; lead times and minimums may apply -- contact support.

NewAge Industries

NewAge Industries is a leading independent, employee-owned manufacturer of fluid transfer systems that produce high-quality tubing, hose, fittings, clamps, and accessories and offers expert project guidance and services.

As a reliable provider that offers an exceptional customer experience, a culture of social responsibility, and a focus on sustainability, NewAge helps businesses engineer products that create a positive global impact.
