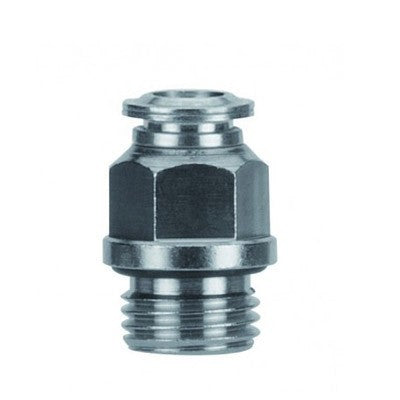

57020-8-3/8" AIGNEP | 57 Series | Straight Male Metal Release Collet | 8mm Tube x 3/8" Male BSPP | Pack of 10

57020-8-3/8 by AIGNEP | 57 Series | Male Metal Release Collet | 8mm Tube x 3/8" Male BSPP | Straight | Pack of 10

Save $12.91

$32.27

$32.27 - $32.27

$32.27

$19.36

$19.36 - $19.36

$19.36

Package Quantity: 10 ea

Specifications for Variant SKU: 57020-8-3/8 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Straight
Ends Configuration:	8mm Push-to-Connect, 3/8in Male BSPP
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Straight Male Metallic - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPP

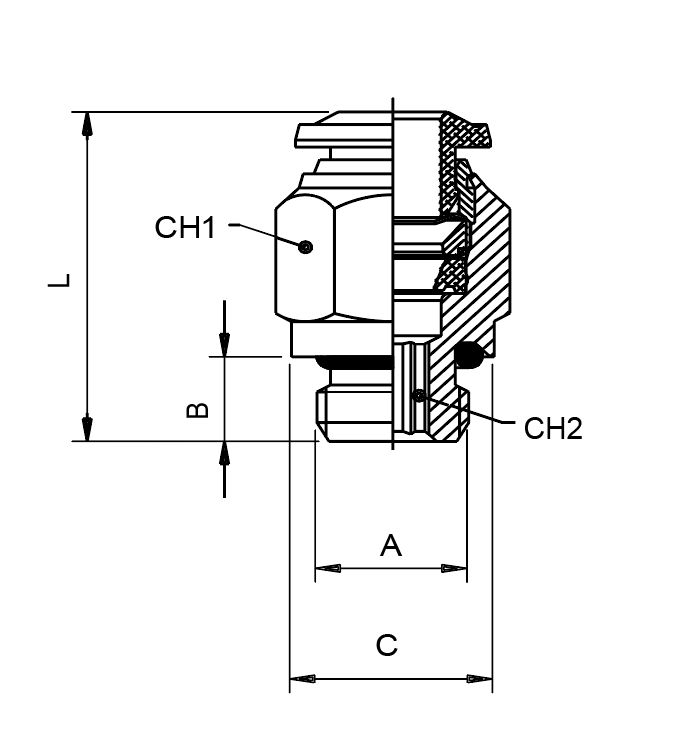

Product Number	Tube	A	B	C	L	CH1	CH2
57020-4-M5	4 mm	M5	4 mm	8 mm	21 mm	10 mm	2 mm
57020-4-1/8	4 mm	1/8''	6 mm	13 mm	20 mm	10 mm	3 mm
57020-4-1/4	4 mm	1/4''	8 mm	16 mm	19.5 mm	16 mm	3 mm
57020-5-M5	5 mm	M5	4 mm	8 mm	23.5 mm	12 mm	2 mm
57020-5-1/8	5 mm	1/8''	6 mm	13 mm	22 mm	12 mm	4 mm
57020-6-M5	6 mm	M5	4 mm	10 mm	24.5 mm	13 mm	2 mm
57020-6-1/8	6 mm	1/8''	6 mm	13 mm	23.5 mm	13 mm	4 mm
57020-6-1/4	6 mm	1/4''	8 mm	16 mm	23.5 mm	13 mm	4 mm
57020-6-3/8	6 mm	3/8''	9 mm	20 mm	25 mm	13 mm	4 mm
57020-6-1/2	6 mm	1/2''	10 mm	25 mm	27 mm	13 mm	4 mm
57020-6-M12X1	6 mm	M12 x 1	8 mm	15 mm	23.5 mm	13 mm	4 mm
57020-6-M12X1.5	6 mm	M12 x 1.5	8 mm	15 mm	23.5 mm	13 mm	4 mm
57020-8-1/8	8 mm	1/8''	6 mm	13 mm	25 mm	14 mm	5 mm
57020-8-1/4	8 mm	1/4''	8 mm	16 mm	23 mm	14 mm	6 mm
57020-8-3/8	8 mm	3/8''	9 mm	20 mm	24 mm	14 mm	6 mm
57020-8-1/2	8 mm	1/2''	10 mm	25 mm	26.5 mm	14 mm	6 mm
57020-8-M12X1.5	8 mm	M12 x 1.5	8 mm	15 mm	27.5 mm	14 mm	6 mm
57020-10-1/4	10 mm	1/4''	8 mm	16 mm	30.5 mm	17 mm	6 mm
57020-10-3/8	10 mm	3/8''	9 mm	20 mm	27.5 mm	17 mm	8 mm
57020-10-1/2	10 mm	1/2''	10 mm	25 mm	27 mm	17 mm	8 mm
57020-12-1/4	12 mm	1/4''	8 mm	16 mm	34.5 mm	20 mm	6 mm
57020-12-3/8	12 mm	3/8''	9 mm	20 mm	34 mm	20 mm	8 mm
57020-12-1/2	12 mm	1/2''	10 mm	25 mm	31 mm	22 mm	10 mm
57020-14-3/8	14 mm	3/8''	9 mm	20 mm	35 mm	21 mm	10 mm
57020-14-1/2	14 mm	1/2''	10 mm	25 mm	32 mm	22 mm	11 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
