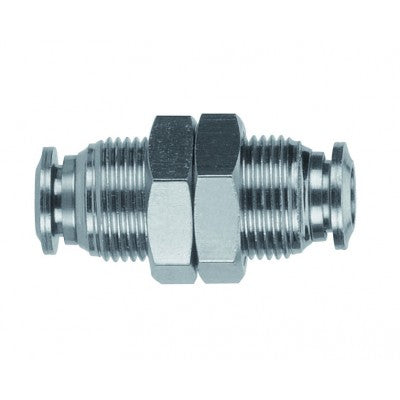

57050-10 AIGNEP | 57 Series | Bulkhead Union Metal Release Collet | 10mm Tube | Pack of 10

57050-10 by AIGNEP | 57 Series | Bulkhead Union Metal Release Collet | 10mm Tube | Pack of 10

Save $37.06

$92.65

$92.65 - $92.65

$92.65

$55.59

$55.59 - $55.59

$55.59

Package Quantity: 10 ea

Specifications for Variant SKU: 57050-10 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Straight
Ends Configuration:	10mm Push-to-Connect, 10mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass

Bulkhead Union Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

Product Number	Tube	M	CH	L	A Max
57050-4	4 mm	M12X1	17 mm	31.5 mm	7 mm
57050-5	5 mm	M14X1	17 mm	33 mm	7 mm
57050-6	6 mm	M14X1	17 mm	35 mm	9.5 mm
57050-10	10 mm	M20X1	24 mm	43 mm	12.5 mm
57050-12	12 mm	M22X1	26 mm	48 mm	16.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
