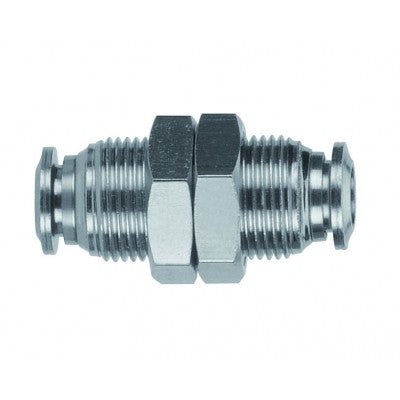

57050-12 by AIGNEP | 57 Series | Bulkhead Union Metal Release Collet | 12mm Tube | Pack of 10

Save $18.66 Save $18.66
Original price $105.86
Original price $105.86 - Original price $105.86
Original price $105.86
Current price $87.20
$87.20 - $87.20
Current price $87.20

Package Quantity: 10 ea

Specifications for Variant SKU: 57050-12 AIGNEP | 10 |
Series: 57 Series
Shape (Orientation): Straight
Ends Configuration: 12mm Push-to-Connect, 12mm Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass

Bulkhead Union Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

Product Number Tube M CH L A Max
57050-4 4 mm M12X1 17 mm 31.5 mm 7 mm
57050-5 5 mm M14X1 17 mm 33 mm 7 mm
57050-6 6 mm M14X1 17 mm 35 mm 9.5 mm
57050-10 10 mm M20X1 24 mm 43 mm 12.5 mm
57050-12 12 mm M22X1 26 mm 48 mm 16.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
