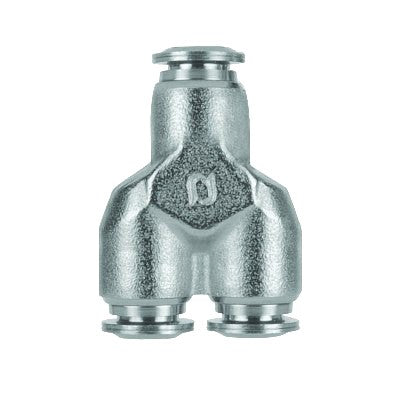

57310-4 AIGNEP | 57 Series | Union Y Metal Release Collet | 4mm Tube | Pack of 10

57310-4 by AIGNEP | 57 Series | Union Metal Release Collet | 4mm Tube | Y | Pack of 10

Save $19.25

$78.58

$78.58 - $78.58

$78.58

$59.33

$59.33 - $59.33

$59.33

Package Quantity: 10 ea

Specifications for Variant SKU: 57310-4 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Y
Ends Configuration:	4mm Push-to-Connect, 4mm Push-to-Connect, 4mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass

Union Y Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

Product Number	Tube	A	L	CH	D
57310-4	4 mm	11 mm	32 mm	11 mm	10 mm
57310-5	5 mm	13.5 mm	35 mm	13 mm	12.5 mm
57310-6	6 mm	13.5 mm	36.5 mm	13 mm	12.5 mm
57310-8	8 mm	15.5 mm	41 mm	15 mm	14 mm
57310-10	10 mm	18.5 mm	48 mm	18 mm	17 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
