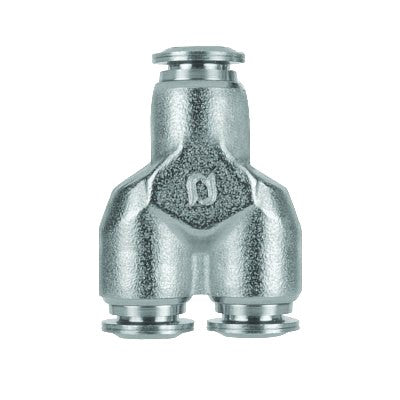

57310-5 by AIGNEP | 57 Series | Union Metal Release Collet | 5mm Tube | Y | Pack of 10

Save $33.54 Save $33.54
Original price $83.85
Original price $83.85 - Original price $83.85
Original price $83.85
Current price $50.31
$50.31 - $50.31
Current price $50.31

Package Quantity: 10 ea

Specifications for Variant SKU: 57310-5 AIGNEP | 10 |
Series: 57 Series
Shape (Orientation): Y
Ends Configuration: 5mm Push-to-Connect, 5mm Push-to-Connect, 5mm Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass

Union Y Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Product Number Tube A L CH D
57310-4 4 mm 11 mm 32 mm 11 mm 10 mm
57310-5 5 mm 13.5 mm 35 mm 13 mm 12.5 mm
57310-6 6 mm 13.5 mm 36.5 mm 13 mm 12.5 mm
57310-8 8 mm 15.5 mm 41 mm 15 mm 14 mm
57310-10 10 mm 18.5 mm 48 mm 18 mm 17 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
