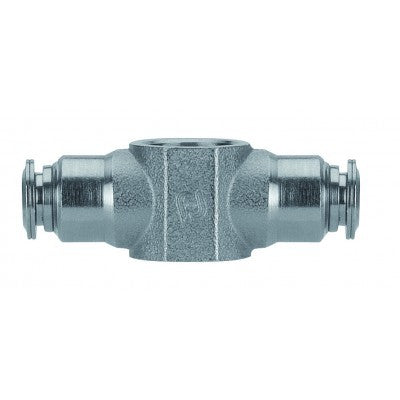

57510-5-1/4" AIGNEP | 57 Series | Double Banjo Body Metric | 5mm Tube x 1/4" Stem | Pack of 10

57510-5-1/4 by AIGNEP | 57 Series | Double Banjo Body Metric | 5mm Tube x 1/4" Stem | Pack of 10

Save $29.82

$74.55

$74.55 - $74.55

$74.55

$44.73

$44.73 - $44.73

$44.73

Package Quantity: 10 ea

Specifications for Variant SKU: 57510-5-1/4 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Banjo
Material(s):	Nickel-Plated Brass

Double Banjo Body Metallic Metric

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

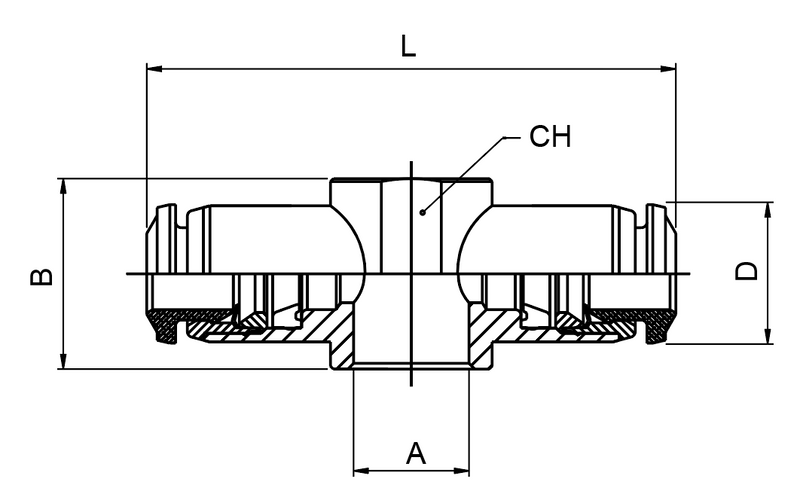

Product Number	Tube	A	B	L	CH	D
57510-4-M5	4 mm	M5	12.5 mm	38 mm	-	10 mm
57510-4-M6	4 mm	M6	12.5 mm	38 mm	-	10 mm
57510-4-1/8	4 mm	1/8"	15 mm	42 mm	14 mm	10 mm
57510-5-1/8	5 mm	1/8"	15 mm	43 mm	14 mm	12.5 mm
57510-5-1/4	5 mm	1/4"	17 mm	49 mm	18 mm	12.5 mm
57510-6-1/8	6 mm	1/8"	15 mm	44 mm	14 mm	12.5 mm
57510-6-1/4	6 mm	1/4"	17 mm	50 mm	18 mm	12.5 mm
57510-8-1/8	8 mm	1/8"	15 mm	48 mm	14 mm	14 mm
57510-8-1/4	8 mm	1/4"	17 mm	52 mm	18 mm	14 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
