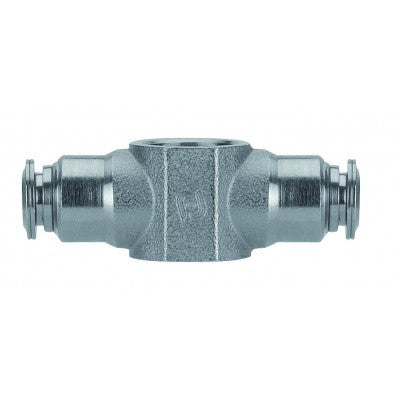

57510-5-1/8" AIGNEP | 57 Series | Double Banjo Body Metric | 5mm Tube x 1/8" Stem | Pack of 10
57510-5-1/8 by AIGNEP | 57 Series | Double Banjo Body Metric | 5mm Tube x 1/8" Stem | Pack of 10
57510-5-1/8" AIGNEP | 57 Series | Double Banjo Body Metric | 5mm Tube x 1/8" Stem | Pack of 10

57510-5-1/8 by AIGNEP | 57 Series | Double Banjo Body Metric | 5mm Tube x 1/8" Stem | Pack of 10

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Package Quantity: 10 ea

Specifications for Variant SKU: 57510-5-1/8 AIGNEP | 10 |
Series: 57 Series
Shape (Orientation): Banjo
Material(s): Nickel-Plated Brass

Double Banjo Body Metallic Metric

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

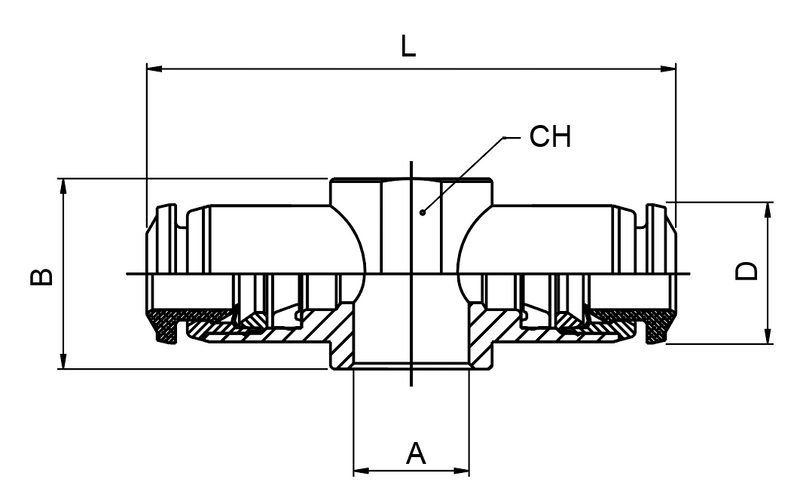

Product Number Tube A B L CH D
57510-4-M5 4 mm M5 12.5 mm 38 mm - 10 mm
57510-4-M6 4 mm M6 12.5 mm 38 mm - 10 mm
57510-4-1/8 4 mm 1/8" 15 mm 42 mm 14 mm 10 mm
57510-5-1/8 5 mm 1/8" 15 mm 43 mm 14 mm 12.5 mm
57510-5-1/4 5 mm 1/4" 17 mm 49 mm 18 mm 12.5 mm
57510-6-1/8 6 mm 1/8" 15 mm 44 mm 14 mm 12.5 mm
57510-6-1/4 6 mm 1/4" 17 mm 50 mm 18 mm 12.5 mm
57510-8-1/8 8 mm 1/8" 15 mm 48 mm 14 mm 14 mm
57510-8-1/4 8 mm 1/4" 17 mm 52 mm 18 mm 14 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
