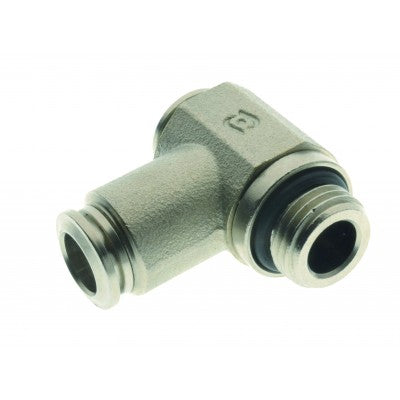

57550-12-3/8" AIGNEP | Banjo Series | Swivel Banjo Assembly | Nickel Plated Brass | 12mm Tube x Male 3/8" BSPP | Pack of 10
57550-12-3/8 by AIGNEP | Banjo Series | Swivel Banjo Assembly | 12mm Tube x Male 3/8" BSPP | Nickel Plated Brass | Pack of 10
57550-12-3/8" AIGNEP | Banjo Series | Swivel Banjo Assembly | Nickel Plated Brass | 12mm Tube x Male 3/8" BSPP | Pack of 10

57550-12-3/8 by AIGNEP | Banjo Series | Swivel Banjo Assembly | 12mm Tube x Male 3/8" BSPP | Nickel Plated Brass | Pack of 10

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Package Quantity: 10 ea

Specifications for Variant SKU: 57550-12-3/8 AIGNEP | 10 |
Series: Banjo Series
Shape (Orientation): 90 Degree
Ends Configuration: 12mm Push-to-Connect, 3/8in Male BSPP
Material(s): Nickel-Plated Brass

Single Banjo Body Nickel Plated Brass

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: BSPP

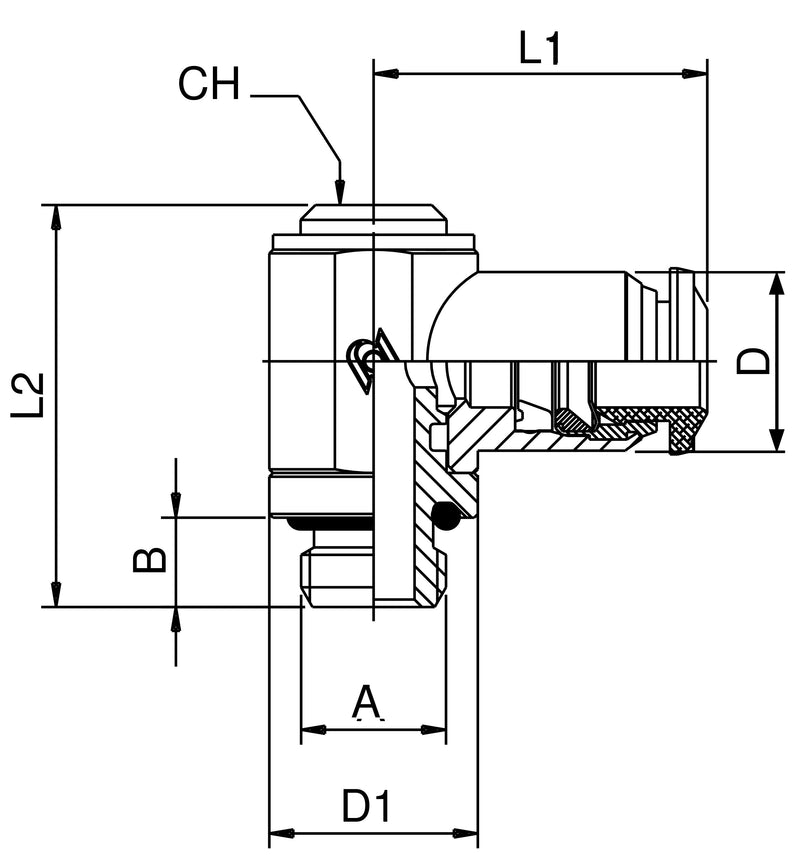

Product Number Tube A B L1 L2 CH D1 D
57550-4-M5 4 mm M5 5 mm 19 mm 24.5 mm - 9 mm 10 mm
57550-4-1/8 4 mm 1/8" 6 mm 21 mm 28 mm 5 mm 14 mm 10 mm
57550-5-M5 5 mm M5 5 mm 20 mm 24.5 mm - 9 mm 12.5 mm
57550-5-1/8 5 mm 1/8" 6 mm 21.5 mm 28 mm 5 mm 14 mm 12.5 mm
57550-5-1/4 5 mm 1/4" 8 mm 24.5 mm 31 mm 6 mm 18 mm 12.5 mm
57550-6-M5 6 mm M5 5 mm 20.5 mm 24.5 mm - 9 mm 12.5 mm
57550-6-1/8 6 mm 1/8" 6 mm 22.5 mm 28 mm 5 mm 14 mm 12.5 mm
57550-6-1/4 6 mm 1/4" 8 mm 25 mm 31 mm 6 mm 18 mm 12.5 mm
57550-8-1/8 8 mm 1/8" 6 mm 24 mm 28 mm 5 mm 14 mm 14 mm
57550-8-1/4 8 mm 1/4" 8 mm 26 mm 31 mm 6 mm 18 mm 14 mm
57550-8-3/8 8 mm 3/8" 9 mm 28 mm 35.5 mm 7 mm 21 mm 14 mm
57550-10-1/4 10 mm 1/4" 8 mm 29 mm 31 mm 6 mm 18 mm 17 mm
57550-10-3/8 10 mm 3/8" 9 mm 30.5 mm 35.5 mm 7 mm 21 mm 17 mm
57550-12-3/8 12 mm 3/8" 9 mm 32.5 mm 35.5 mm 7 mm 21 mm 21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
