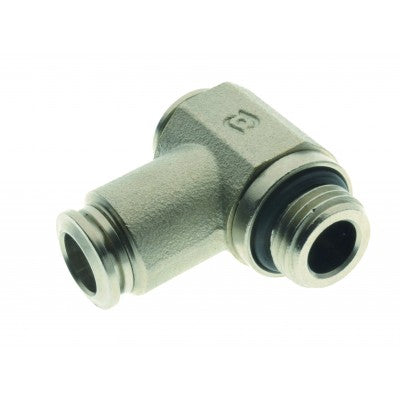

57550-8-3/8" AIGNEP | Banjo Series | Swivel Banjo Assembly | Nickel Plated Brass | 8mm Tube x Male 3/8" BSPP | Pack of 10

57550-8-3/8 by AIGNEP | Banjo Series | Swivel Banjo Assembly | 8mm Tube x Male 3/8" BSPP | Nickel Plated Brass | Pack of 10

Save $38.33

$95.82

$95.82 - $95.82

$95.82

$57.49

$57.49 - $57.49

$57.49

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 57550-8-3/8 AIGNEP \| 10 \|
Series:	Banjo Series
Shape (Orientation):	Banjo
Ends Configuration:	8mm Push-to-Connect, 3/8in Male BSPP
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Single Banjo Body Nickel Plated Brass

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: BSPP

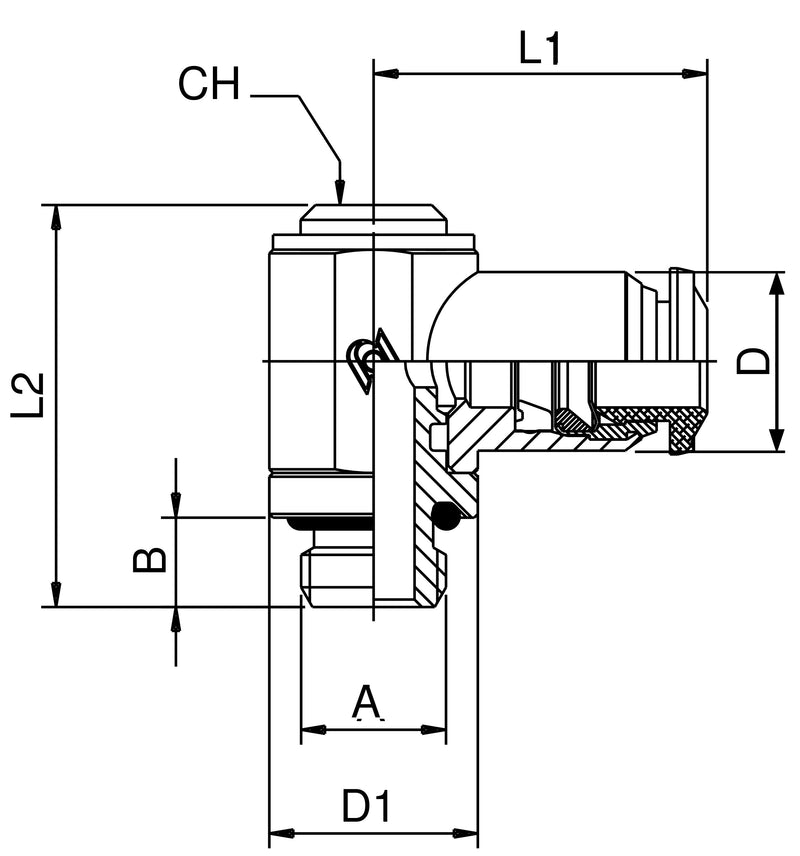

Tube	A	B	L1	L2	CH	D1	D
57550-4-M5	4 mm	M5	5 mm	19 mm	24.5 mm	-	9 mm	10 mm
57550-4-1/8	4 mm	1/8"	6 mm	21 mm	28 mm	5 mm	14 mm	10 mm
57550-5-M5	5 mm	M5	5 mm	20 mm	24.5 mm	-	9 mm	12.5 mm
57550-5-1/8	5 mm	1/8"	6 mm	21.5 mm	28 mm	5 mm	14 mm	12.5 mm
57550-5-1/4	5 mm	1/4"	8 mm	24.5 mm	31 mm	6 mm	18 mm	12.5 mm
57550-6-M5	6 mm	M5	5 mm	20.5 mm	24.5 mm	-	9 mm	12.5 mm
57550-6-1/8	6 mm	1/8"	6 mm	22.5 mm	28 mm	5 mm	14 mm	12.5 mm
57550-6-1/4	6 mm	1/4"	8 mm	25 mm	31 mm	6 mm	18 mm	12.5 mm
57550-8-1/8	8 mm	1/8"	6 mm	24 mm	28 mm	5 mm	14 mm	14 mm
57550-8-1/4	8 mm	1/4"	8 mm	26 mm	31 mm	6 mm	18 mm	14 mm
57550-8-3/8	8 mm	3/8"	9 mm	28 mm	35.5 mm	7 mm	21 mm	14 mm
57550-10-1/4	10 mm	1/4"	8 mm	29 mm	31 mm	6 mm	18 mm	17 mm
57550-10-3/8	10 mm	3/8"	9 mm	30.5 mm	35.5 mm	7 mm	21 mm	17 mm
57550-12-3/8	12 mm	3/8"	9 mm	32.5 mm	35.5 mm	7 mm	21 mm	21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
