57915-10-3/8" AIGNEP | Functional (Flow Controls) Series | Flow Control | 10mm Tube x 3/8" Swift-Fit Male Universal Thread
57915-10-3/8 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 10mm Tube x 3/8" Swift-Fit Male Universal Thread
57915-10-3/8" AIGNEP | Functional (Flow Controls) Series | Flow Control | 10mm Tube x 3/8" Swift-Fit Male Universal Thread

57915-10-3/8 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 10mm Tube x 3/8" Swift-Fit Male Universal Thread

Save $9.89 Save $9.89
$24.73
$24.73 - $24.73
$24.73
$14.84
$14.84 - $14.84
$14.84
Specifications for Variant SKU: 57915-10-3/8 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): 90 Degree
Ends Configuration: 10mm Push-to-Connect, 3/8in Male Swift-Fit
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Metric Tube Flow Control (IN)

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

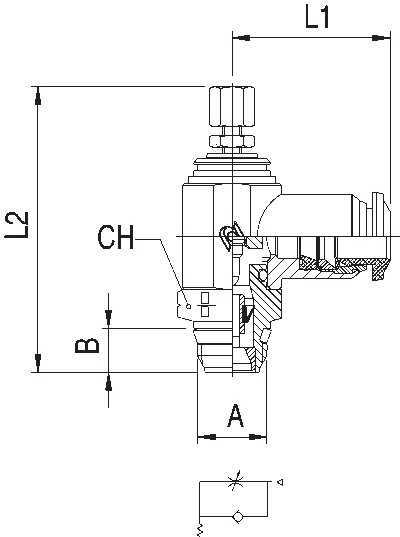

Product Number Tube A B D L1 L2 Min L2 Max CH
57915-4-M5 4 mm M5 4 mm 10 mm 19 mm 39.5 mm 43.5 mm 8 mm
57915-4-1/8 4 mm 1/8" 5.5 mm 10 mm 21 mm 44 mm 49 mm 14 mm
57915-5-M5 5 mm M5 4 mm 12.5 mm 20 mm 39.5 mm 43.5 mm 8 mm
57915-5-1/8 5 mm 1/8" 5.5 mm 12.5 mm 21.5 mm 44 mm 49 mm 14 mm
57915-5-1/4 5 mm 1/4" 7 mm 12.5 mm 24.5 mm 48.5 mm 55 mm 17 mm
57915-6-M5 6 mm M5 4 mm 12.5 mm 20.5 mm 39.5 mm 43.5 mm 8 mm
57915-6-1/8 6 mm 1/8" 5.5 mm 12.5 mm 22.5 mm 44 mm 49 mm 14 mm
57915-6-1/4 6 mm 1/4" 7 mm 12.5 mm 25 mm 48.5 mm 55 mm 17 mm
57915-8-1/8 8 mm 1/8" 5.5 mm 14 mm 24 mm 44 mm 49 mm 14 mm
57915-8-1/4 8 mm 1/4" 7 mm 14 mm 26 mm 48.5 mm 55 mm 17 mm
57915-8-3/8 8 mm 3/8" 7.5 mm 14 mm 28.5 mm 56 mm 65 mm 20 mm
57915-10-1/4 10 mm 1/4" 7 mm 17 mm 28.5 mm 48.5 mm 55 mm 17 mm
57915-10-3/8 10 mm 3/8" 7.5 mm 17 mm 30.5 mm 56 mm 65 mm 20 mm
57915-12-3/8 12 mm 3/8" 7.5 mm 21.5 mm 32.5 mm 56 mm 65 mm 20 mm
57915-12-1/2 12 mm 1/2" 9 mm 21.5 mm 35 mm 62 mm 69 mm 24 mm
57915-14-1/2 14 mm 1/2" 9 mm 21.5 mm 35.5 mm 62 mm 69 mm 24 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
