57915-14-1/2" AIGNEP | Functional (Flow Controls) Series | Flow Control | 14mm Tube x 1/2" Swift-Fit Male | Metal Release Collet | Flow In Knob Adjustment

57915-14-1/2 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 14mm Tube x 1/2" Swift-Fit Male | Metal Release Collet | Flow In Knob Adjustment

Save $0.24

$24.63

$24.63 - $24.63

$24.63

$24.39

$24.39 - $24.39

$24.39

Quantity

Specifications for Variant SKU: 57915-14-1/2 AIGNEP
Series:	Functional (Flow Controls) Series
Shape (Orientation):	90 Degree
Ends Configuration:	14mm Push-to-Connect, 1/2in Male Swift-Fit
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Metric Tube Flow Control (IN)

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

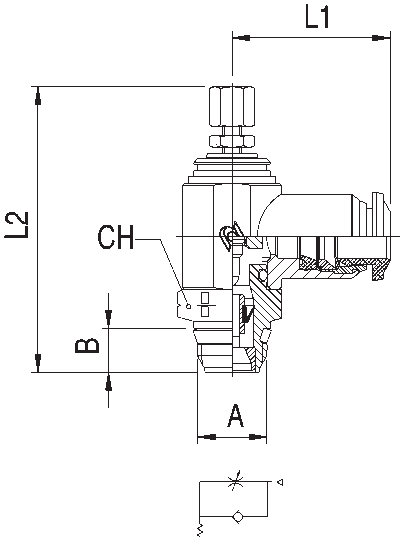

Product Number	Tube	A	B	D	L1	L2 Min	L2 Max	CH
57915-4-M5	4 mm	M5	4 mm	10 mm	19 mm	39.5 mm	43.5 mm	8 mm
57915-4-1/8	4 mm	1/8"	5.5 mm	10 mm	21 mm	44 mm	49 mm	14 mm
57915-5-M5	5 mm	M5	4 mm	12.5 mm	20 mm	39.5 mm	43.5 mm	8 mm
57915-5-1/8	5 mm	1/8"	5.5 mm	12.5 mm	21.5 mm	44 mm	49 mm	14 mm
57915-5-1/4	5 mm	1/4"	7 mm	12.5 mm	24.5 mm	48.5 mm	55 mm	17 mm
57915-6-M5	6 mm	M5	4 mm	12.5 mm	20.5 mm	39.5 mm	43.5 mm	8 mm
57915-6-1/8	6 mm	1/8"	5.5 mm	12.5 mm	22.5 mm	44 mm	49 mm	14 mm
57915-6-1/4	6 mm	1/4"	7 mm	12.5 mm	25 mm	48.5 mm	55 mm	17 mm
57915-8-1/8	8 mm	1/8"	5.5 mm	14 mm	24 mm	44 mm	49 mm	14 mm
57915-8-1/4	8 mm	1/4"	7 mm	14 mm	26 mm	48.5 mm	55 mm	17 mm
57915-8-3/8	8 mm	3/8"	7.5 mm	14 mm	28.5 mm	56 mm	65 mm	20 mm
57915-10-1/4	10 mm	1/4"	7 mm	17 mm	28.5 mm	48.5 mm	55 mm	17 mm
57915-10-3/8	10 mm	3/8"	7.5 mm	17 mm	30.5 mm	56 mm	65 mm	20 mm
57915-12-3/8	12 mm	3/8"	7.5 mm	21.5 mm	32.5 mm	56 mm	65 mm	20 mm
57915-12-1/2	12 mm	1/2"	9 mm	21.5 mm	35 mm	62 mm	69 mm	24 mm
57915-14-1/2	14 mm	1/2"	9 mm	21.5 mm	35.5 mm	62 mm	69 mm	24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
