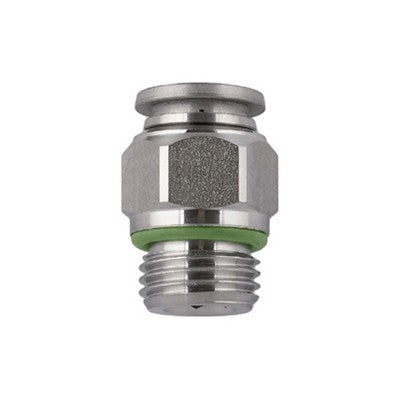

60020-6-M5 AIGNEP | 60/62 Series | Straight Tube Fitting | Stainless Steel 6mm Tube x M5 Male
60020-6-M5 by AIGNEP | 60/62 Series | Tube Fitting 6mm Tube x M5 Male | Straight | Stainless Steel
60020-6-M5 AIGNEP | 60/62 Series | Straight Tube Fitting | Stainless Steel 6mm Tube x M5 Male

60020-6-M5 by AIGNEP | 60/62 Series | Tube Fitting 6mm Tube x M5 Male | Straight | Stainless Steel

Save $0.11 Save $0.11
$11.34
$11.34 - $11.34
$11.34
$11.23
$11.23 - $11.23
$11.23
Specifications for Variant SKU: 60020-6-M5 AIGNEP
Series: 60/62 Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Seal Material(s): Viton/FKM

Straight Male Stainless - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 392° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

Product Number Tube A B (IN) B C L CH1 CH2
60020-4-M5 4 mm M5 0.157" 4 mm 8 mm 20 mm 10 mm 2 mm
60020-4-1/8 4 mm 1/8" 0.236" 6 mm 13 mm 19.5 mm 10 mm 3 mm
60020-4-1/4 4 mm 1/4" 0.314" 8 mm 15 mm 19.5 mm 15 mm 3 mm
60020-6-M5 6 mm M5 0.157" 4 mm 10 mm 23 mm 12 mm 2 mm
60020-6-1/8 6 mm 1/8" 0.236" 6 mm 13 mm 23.5 mm 13 mm 4 mm
60020-6-1/4 6 mm 1/4" 0.314" 8 mm 15 mm 23.5 mm 15 mm 4 mm
60020-8-1/8 8 mm 1/8" 0.236" 6 mm 13 mm 25.5 mm 14 mm 5 mm
60020-8-1/4 8 mm 1/4" 0.314" 8 mm 15 mm 23.5 mm 15 mm 6 mm
60020-10-1/4 10 mm 1/4" 0.314" 8 mm 16 mm 30 mm 17 mm 8 mm
60020-10-3/8 10 mm 3/8" 0.354" 9 mm 20 mm 27 mm 17 mm 8 mm
60020-10-1/2 10 mm 1/2" 0.393" 10 mm 17 mm 30 mm 22 mm 8 mm
60020-12-3/8 12 mm 3/8" 0.354" 9 mm 21 mm 34 mm 21 mm 8 mm
60020-12-1/2 12 mm 1/2" 0.393" 10 mm 25 mm 31 mm 22 mm 10 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
