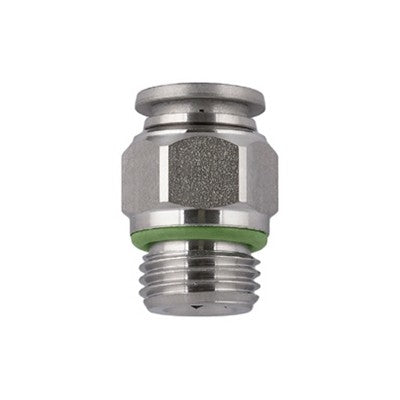

60020-8-1/8" AIGNEP | 60/62 Series | Stainless Steel Straight | 8mm (5/16")Tube Push Connect x 1/8" Male BSPP | FKM Seal

60020-8-1/8 by AIGNEP | 60/62 Series | 8mm (5/16")Tube Push Connect x 1/8" Male BSPP | Straight | FKM Seal | Stainless Steel

Save $0.13

$12.58

$12.58 - $12.58

$12.58

$12.45

$12.45 - $12.45

$12.45

Quantity

Specifications for Variant SKU: 60020-8-1/8 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	8mm Push-to-Connect, 1/8in Male BSPP
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Straight Male Stainless - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 392° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

Product Number	Tube	A	B (IN)	B	C	L	CH1	CH2
60020-4-M5	4 mm	M5	0.157"	4 mm	8 mm	20 mm	10 mm	2 mm
60020-4-1/8	4 mm	1/8"	0.236"	6 mm	13 mm	19.5 mm	10 mm	3 mm
60020-4-1/4	4 mm	1/4"	0.314"	8 mm	15 mm	19.5 mm	15 mm	3 mm
60020-6-M5	6 mm	M5	0.157"	4 mm	10 mm	23 mm	12 mm	2 mm
60020-6-1/8	6 mm	1/8"	0.236"	6 mm	13 mm	23.5 mm	13 mm	4 mm
60020-6-1/4	6 mm	1/4"	0.314"	8 mm	15 mm	23.5 mm	15 mm	4 mm
60020-8-1/8	8 mm	1/8"	0.236"	6 mm	13 mm	25.5 mm	14 mm	5 mm
60020-8-1/4	8 mm	1/4"	0.314"	8 mm	15 mm	23.5 mm	15 mm	6 mm
60020-10-1/4	10 mm	1/4"	0.314"	8 mm	16 mm	30 mm	17 mm	8 mm
60020-10-3/8	10 mm	3/8"	0.354"	9 mm	20 mm	27 mm	17 mm	8 mm
60020-10-1/2	10 mm	1/2"	0.393"	10 mm	17 mm	30 mm	22 mm	8 mm
60020-12-3/8	12 mm	3/8"	0.354"	9 mm	21 mm	34 mm	21 mm	8 mm
60020-12-1/2	12 mm	1/2"	0.393"	10 mm	25 mm	31 mm	22 mm	10 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
