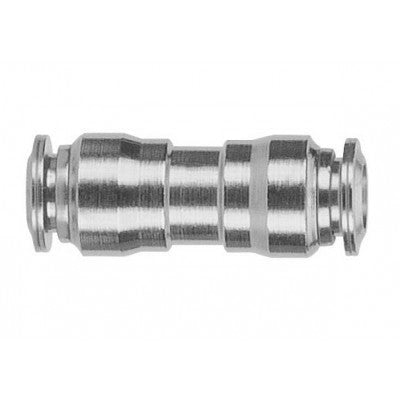

60040-04 AIGNEP | 60/62 Series | Stainless Steel Union | 1/4" Tube Push Connect | FKM Seal
60040-04 by AIGNEP | 60/62 Series | Union | 1/4" Tube Push Connect | FKM Seal | Stainless Steel
60040-04 AIGNEP | 60/62 Series | Stainless Steel Union | 1/4" Tube Push Connect | FKM Seal

60040-04 by AIGNEP | 60/62 Series | Union | 1/4" Tube Push Connect | FKM Seal | Stainless Steel

Save $8.33 Save $8.33
$20.83
$20.83 - $20.83
$20.83
$12.50
$12.50 - $12.50
$12.50
Specifications for Variant SKU: 60040-04 AIGNEP
Series: 60/62 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): Viton/FKM

Union Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM

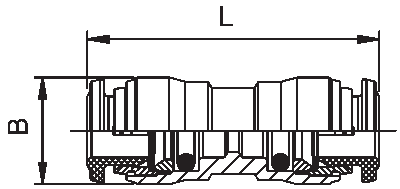

Product Number Tube B (IN) B L
60040-53 5/32" 0.393" 10 mm 31 mm
60040-04 1/4" 0.492" 12.5 mm 35 mm
60040-05 5/16" 0.570" 14.5 mm 36.5 mm
60040-06 3/8" 0.688" 17.5 mm 42 mm
60040-08 1/2" 0.807" 20.5 mm 48 mm
60040-10 10 mm 0.669" 17.5 mm 42 mm
60040-12 12 mm 0.807" 20.5 mm 48 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
