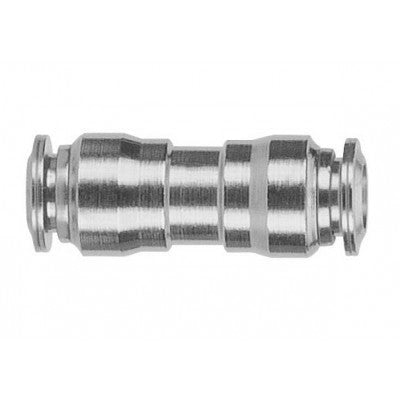

60040-10 AIGNEP | 60/62 Series | Stainless Steel Union | 10mm Tube Push Connect | FKM Seal

60040-10 by AIGNEP | 60/62 Series | Union | 10mm Tube Push Connect | FKM Seal | Stainless Steel

Save $12.93

$32.33

$32.33 - $32.33

$32.33

$19.40

$19.40 - $19.40

$19.40

Specifications for Variant SKU: 60040-10 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	10mm Push-to-Connect, 10mm Push-to-Connect, Some Ends Match
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Union Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM

Product Number	Tube	B (IN)	B	L
60040-53	5/32"	0.393"	10 mm	31 mm
60040-04	1/4"	0.492"	12.5 mm	35 mm
60040-05	5/16"	0.570"	14.5 mm	36.5 mm
60040-06	3/8"	0.688"	17.5 mm	42 mm
60040-08	1/2"	0.807"	20.5 mm	48 mm
60040-10	10 mm	0.669"	17.5 mm	42 mm
60040-12	12 mm	0.807"	20.5 mm	48 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
