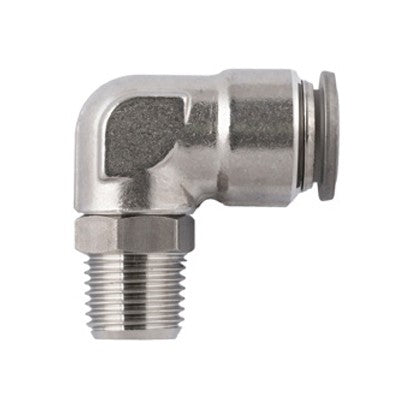

60110-10-1/2" AIGNEP | 60/62 Series | Stainless Steel Swivel Male 90° Elbow | 10mm Tube Push Connect x 1/2" BSPT Male | FKM Seal

60110-10-1/2 by AIGNEP | 60/62 Series | Swivel | 10mm Tube Push Connect x 1/2" BSPT Male | 90° Elbow | FKM Seal | Stainless Steel

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Specifications for Variant SKU: 60110-10-1/2 AIGNEP
Series:	60/62 Series
Shape (Orientation):	90 Degree
Ends Configuration:	10mm Push-to-Connect, 1/2in Male BSPT
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Swivel Elbow Stainless - BSPT

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

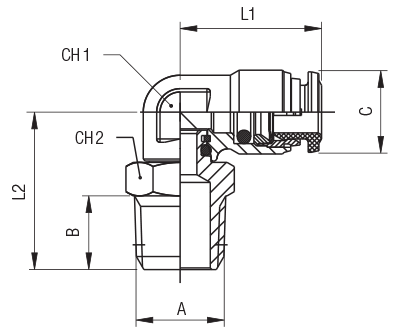

Tube	A	B	C	L1	L2	CH1	CH2
60110-4-1/8	4 mm	1/8"	10 mm	7.5 mm	18 mm	17.5 mm	9 mm	11 mm
60110-4-1/4	4 mm	1/4"	10 mm	11 mm	18 mm	21.5 mm	9 mm	14 mm
60110-8-1/8	8 mm	1/8"	14.5 mm	7.5 mm	22.5 mm	20 mm	12 mm	11 mm
60110-10-3/8	10 mm	3/8"	17.5 mm	11.5 mm	26 mm	27 mm	16 mm	17 mm
60110-10-1/2	10 mm	1/2"	17.5 mm	14 mm	26 mm	30.5 mm	16 mm	22 mm
60110-12-3/8	12 mm	3/8"	20.5 mm	11.5 mm	30.5 mm	30.5 mm	19 mm	18 mm
60110-12-1/2	12 mm	1/2"	20.5 mm	14 mm	30.5 mm	33 mm	19 mm	22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
