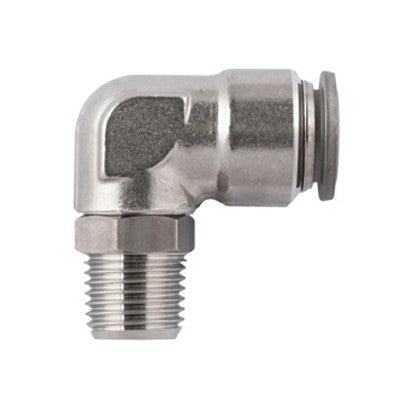

60110-12-3/8" AIGNEP | 60/62 Series | Stainless Steel Swivel Male 90° Elbow | 12mm Tube Push Connect x 3/8" BSPT Male | FKM Seal
60110-12-3/8 by AIGNEP | 60/62 Series | Swivel | 12mm Tube Push Connect x 3/8" BSPT Male | 90° Elbow | FKM Seal | Stainless Steel
60110-12-3/8" AIGNEP | 60/62 Series | Stainless Steel Swivel Male 90° Elbow | 12mm Tube Push Connect x 3/8" BSPT Male | FKM Seal

60110-12-3/8 by AIGNEP | 60/62 Series | Swivel | 12mm Tube Push Connect x 3/8" BSPT Male | 90° Elbow | FKM Seal | Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Specifications for Variant SKU: 60110-12-3/8 AIGNEP
Series: 60/62 Series
Shape (Orientation): 90 Degree
Ends Configuration: 12mm Push-to-Connect, 3/8in Male BSPT
Material(s): Stainless Steel
Seal Material(s): Viton/FKM

Swivel Elbow Stainless - BSPT

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

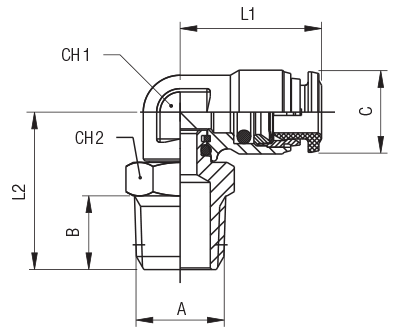

Product Number Tube A B C L1 L2 CH1 CH2
60110-4-1/8 4 mm 1/8" 10 mm 7.5 mm 18 mm 17.5 mm 9 mm 11 mm
60110-4-1/4 4 mm 1/4" 10 mm 11 mm 18 mm 21.5 mm 9 mm 14 mm
60110-8-1/8 8 mm 1/8" 14.5 mm 7.5 mm 22.5 mm 20 mm 12 mm 11 mm
60110-10-3/8 10 mm 3/8" 17.5 mm 11.5 mm 26 mm 27 mm 16 mm 17 mm
60110-10-1/2 10 mm 1/2" 17.5 mm 14 mm 26 mm 30.5 mm 16 mm 22 mm
60110-12-3/8 12 mm 3/8" 20.5 mm 11.5 mm 30.5 mm 30.5 mm 19 mm 18 mm
60110-12-1/2 12 mm 1/2" 20.5 mm 14 mm 30.5 mm 33 mm 19 mm 22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
