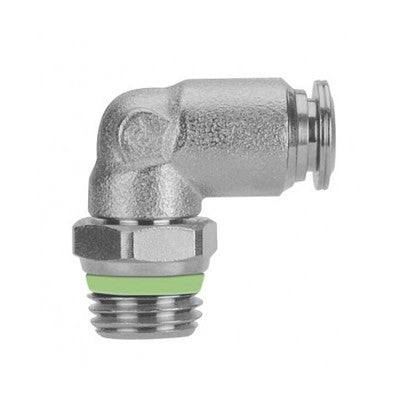

60111X-06-04 AIGNEP | 60/62 Series | Stainless Steel Swivel Male 90° Elbow | 3/8" Tube Push Connect x 1/4" Male Swift-Fit Universal Thread | FKM Seal (Old Part #: 60110-06-04)
60111X-06-04 by AIGNEP | 60/62 Series | Swivel | 3/8" Tube Push Connect x 1/4" Male Swift-Fit Universal Thread | 90° Elbow | FKM Seal | Stainless Steel (Old Part #: 60110-06-04)
60111X-06-04 AIGNEP | 60/62 Series | Stainless Steel Swivel Male 90° Elbow | 3/8" Tube Push Connect x 1/4" Male Swift-Fit Universal Thread | FKM Seal (Old Part #: 60110-06-04)

60111X-06-04 by AIGNEP | 60/62 Series | Swivel | 3/8" Tube Push Connect x 1/4" Male Swift-Fit Universal Thread | 90° Elbow | FKM Seal | Stainless Steel (Old Part #: 60110-06-04)

Save $15.70 Save $15.70
$60.73
$60.73 - $60.73
$60.73
$45.03
$45.03 - $45.03
$45.03

(Formerly 60110 Series)
Specifications for Variant SKU: 60111X-06-04 AIGNEP
Series: 60/62 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Push-to-Connect, 1/4in Male Swift-Fit
Material(s): Stainless steel
Seal Material(s): FKM

Swivel Elbow Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT

Product Number Tube A B (IN) B L1 L2 CH1 CH2
60111x-53-02 5/32" 1/8" 0.216" 5.5 mm 18 mm 17.5 mm 9 mm 13 mm
60111x-53-04 5/32" 1/4" 0.275" 7 mm 18 mm 17.5 mm 9 mm 14 mm
60111x-04-02 1/4" 1/8" 0.216" 5.5 mm 21 mm 19 mm 11 mm 13 mm
60111x-04-04 1/4" 1/4" 0.275" 7 mm 21 mm 19 mm 11 mm 15 mm
60111x-05-02 5/16" 1/8" 0.216" 5.5 mm 22.5 mm 21 mm 12 mm 13 mm
60111x-05-04 5/16" 1/4" 0.275" 7 mm 22.5 mm 21 mm 12 mm 15 mm
60111x-06-04 3/8" 1/4" 0.275" 7 mm 26 mm 25 mm 16 mm 16 mm
60111x-06-06 3/8" 3/8" 0.295" 7.5 mm 26 mm 23.5 mm 16 mm 17 mm
60111x-06-08 3/8" 1/2" 0.354" 9 mm 26 mm 26 mm 16 mm 21 mm
60111x-08-06 1/2" 3/8" 0.295" 7.5 mm 30.5 mm 25.5 mm 19 mm 20 mm
60111x-08-08 1/2" 1/2" 0.354" 9 mm 30.5 mm 28 mm 19 mm 21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
