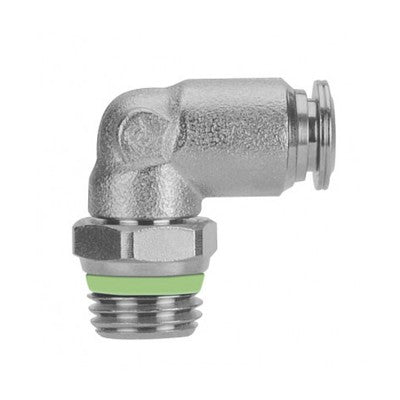

60111X-06-06 AIGNEP | 60/62 Series | Stainless Steel Swivel Male 90° Elbow | 3/8" Tube Push Connect x 3/8" Male Swift-Fit Universal Thread | FKM Seal (Old Part #: 60110-06-06)

60111X-06-06 by AIGNEP | 60/62 Series | Swivel | 3/8" Tube Push Connect x 3/8" Male Swift-Fit Universal Thread | 90° Elbow | FKM Seal | Stainless Steel (Old Part #: 60110-06-06)

Save $15.96

$62.01

$62.01 - $62.01

$62.01

$46.05

$46.05 - $46.05

$46.05

(Formerly 60110 Series)

Specifications for Variant SKU: 60111X-06-06 AIGNEP
Series:	60/62 Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Push-to-Connect, 3/8in Male Swift-Fit
Material(s):	Stainless steel
Seal Material(s):	FKM

Swivel Elbow Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT

Product Number	Tube	A	B (IN)	B	L1	L2	CH1	CH2
60111x-53-02	5/32"	1/8"	0.216"	5.5 mm	18 mm	17.5 mm	9 mm	13 mm
60111x-53-04	5/32"	1/4"	0.275"	7 mm	18 mm	17.5 mm	9 mm	14 mm
60111x-04-02	1/4"	1/8"	0.216"	5.5 mm	21 mm	19 mm	11 mm	13 mm
60111x-04-04	1/4"	1/4"	0.275"	7 mm	21 mm	19 mm	11 mm	15 mm
60111x-05-02	5/16"	1/8"	0.216"	5.5 mm	22.5 mm	21 mm	12 mm	13 mm
60111x-05-04	5/16"	1/4"	0.275"	7 mm	22.5 mm	21 mm	12 mm	15 mm
60111x-06-04	3/8"	1/4"	0.275"	7 mm	26 mm	25 mm	16 mm	16 mm
60111x-06-06	3/8"	3/8"	0.295"	7.5 mm	26 mm	23.5 mm	16 mm	17 mm
60111x-06-08	3/8"	1/2"	0.354"	9 mm	26 mm	26 mm	16 mm	21 mm
60111x-08-06	1/2"	3/8"	0.295"	7.5 mm	30.5 mm	25.5 mm	19 mm	20 mm
60111x-08-08	1/2"	1/2"	0.354"	9 mm	30.5 mm	28 mm	19 mm	21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
