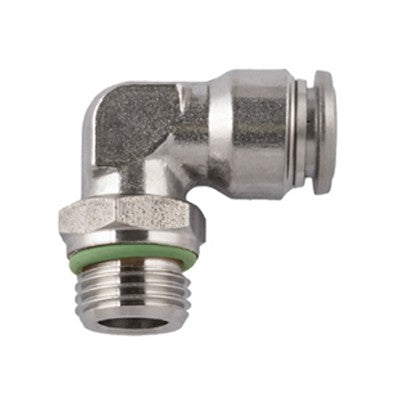

60115-10-1/4" AIGNEP | 60/62 Series | Stainless Steel Swivel Male 90° Elbow | 10mm Tube Push Connect x 1/4" Male BSPP | FKM Seal
60115-10-1/4 by AIGNEP | 60/62 Series | Swivel | 10mm Tube Push Connect x 1/4" Male BSPP | 90° Elbow | FKM Seal | Stainless Steel
60115-10-1/4" AIGNEP | 60/62 Series | Stainless Steel Swivel Male 90° Elbow | 10mm Tube Push Connect x 1/4" Male BSPP | FKM Seal

60115-10-1/4 by AIGNEP | 60/62 Series | Swivel | 10mm Tube Push Connect x 1/4" Male BSPP | 90° Elbow | FKM Seal | Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Specifications for Variant SKU: 60115-10-1/4 AIGNEP
Series: 60/62 Series
Shape (Orientation): 90 Degree
Ends Configuration: 10mm Push-to-Connect, 1/4in Male BSPP
Material(s): Stainless Steel
Seal Material(s): Viton/FKM

Swivel Elbow Stainless - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ? F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

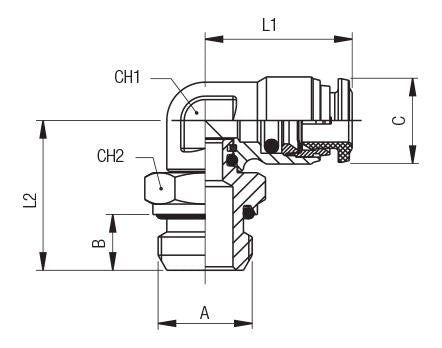

Product Number Tube A B C L1 L2 CH1 CH2
60115-4-M5 4 mm M5 4 mm 10 mm 18 mm 15 mm 9 mm 8 mm
60115-4-1/8 4 mm 1/8" 6 mm 10 mm 18 mm 17 mm 9 mm 13 mm
60115-4-1/4 4 mm 1/4" 8 mm 10 mm 18 mm 19.5 mm 9 mm 15 mm
60115-6-M5 6 mm M5 4 mm 12.5 mm 21 mm 18 mm 11 mm 10 mm
60115-10-1/4 10 mm 1/4" 8 mm 17.5 mm 26 mm 23 mm 16 mm 15 mm
60115-10-3/8 10 mm 3/8" 9 mm 17.5 mm 26 mm 26.5 mm 16 mm 21 mm
60115-12-3/8 12 mm 3/8" 9 mm 20.5 mm 30.5 mm 29 mm 19 mm 21 mm
60115-12-1/2 12 mm 1/2" 10 mm 20.5 mm 30.5 mm 31.5 mm 19 mm 22 mm
