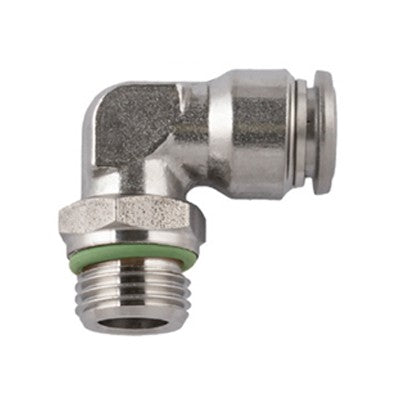

60115-4-1/4" AIGNEP | 60/62 Series | Stainless Steel Swivel Male 90° Elbow | 4mm (5/32") Tube Push Connect x 1/4" Male BSPP | FKM Seal

60115-4-1/4 by AIGNEP | 60/62 Series | Swivel | 4mm (5/32") Tube Push Connect x 1/4" Male BSPP | 90° Elbow | FKM Seal | Stainless Steel

Save $0.23

$23.30

$23.30 - $23.30

$23.30

$23.07

$23.07 - $23.07

$23.07

Quantity

Specifications for Variant SKU: 60115-4-1/4 AIGNEP
Series:	60/62 Series
Shape (Orientation):	90 Degree
Ends Configuration:	4mm Push-to-Connect, 1/4in Male BSPP
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Swivel Elbow Stainless - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ? F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

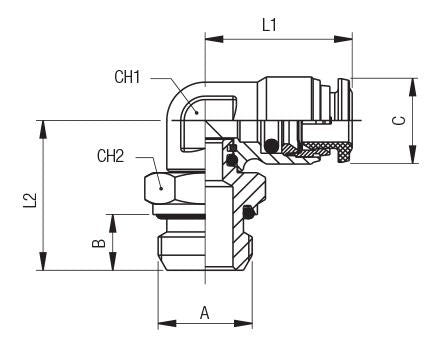

Product Number	Tube	A	B	C	L1	L2	CH1	CH2
60115-4-M5	4 mm	M5	4 mm	10 mm	18 mm	15 mm	9 mm	8 mm
60115-4-1/8	4 mm	1/8"	6 mm	10 mm	18 mm	17 mm	9 mm	13 mm
60115-4-1/4	4 mm	1/4"	8 mm	10 mm	18 mm	19.5 mm	9 mm	15 mm
60115-6-M5	6 mm	M5	4 mm	12.5 mm	21 mm	18 mm	11 mm	10 mm
60115-10-1/4	10 mm	1/4"	8 mm	17.5 mm	26 mm	23 mm	16 mm	15 mm
60115-10-3/8	10 mm	3/8"	9 mm	17.5 mm	26 mm	26.5 mm	16 mm	21 mm
60115-12-3/8	12 mm	3/8"	9 mm	20.5 mm	30.5 mm	29 mm	19 mm	21 mm
60115-12-1/2	12 mm	1/2"	10 mm	20.5 mm	30.5 mm	31.5 mm	19 mm	22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
