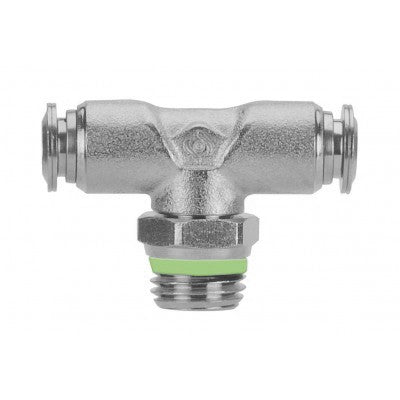

60210-04-02 AIGNEP | 60/62 Series | Stainless Steel Swivel Branch Tee | 1/4" Tube Push Connect x 1/8" Male Swift-Fit Universal Thread | FKM Seal

60210-04-02 by AIGNEP | 60/62 Series | Swivel Branch | 1/4" Tube Push Connect x 1/8" Male Swift-Fit Universal Thread | Tee | FKM Seal | Stainless Steel

Save $2.84

$28.37

$28.37 - $28.37

$28.37

$25.53

$25.53 - $25.53

$25.53

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 60210-04-02 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Tee
Ends Configuration:	1/4in Push-to-Connect, 1/8in Male Swift-Fit
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Swivel Branch Tee Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT

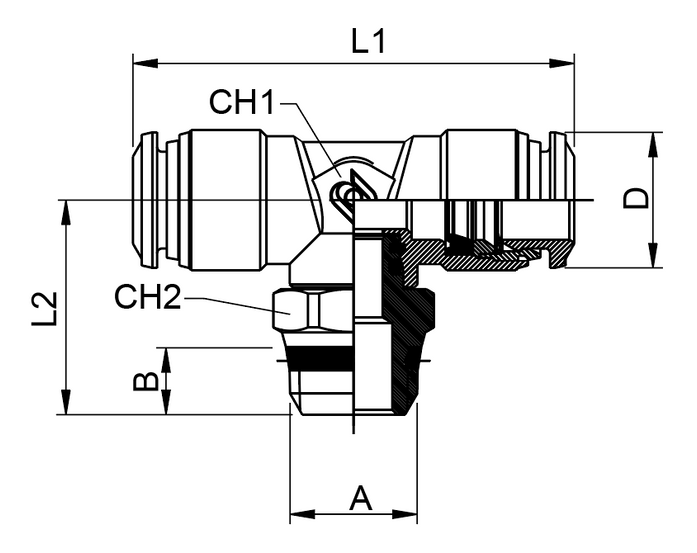

Tube	A	B (IN)	B	L1	L2	CH1	CH2	D
60210-53-32	5/32"	10-32	0.157"	4 mm	36 mm	16 mm	9 mm	8 mm	10 mm
60210-53-02	5/32"	1/8"	0.216"	5.5 mm	36 mm	17.5 mm	9 mm	13 mm	10 mm
60210-53-04	5/32"	1/4"	0.275"	7 mm	36 mm	19 mm	9 mm	15 mm	10 mm
60210-04-02	1/4"	1/8"	0.216"	5.5 mm	42 mm	19 mm	11 mm	13 mm	12.5 mm
60210-04-04	1/4"	1/4"	0.275"	7 mm	42 mm	20.5 mm	11 mm	15 mm	12.5 mm
60210-05-02	5/16"	1/8"	0.216"	5.5 mm	45 mm	21.5 mm	12 mm	13 mm	14.5 mm
60210-05-04	5/16"	1/4"	0.275"	7 mm	45 mm	21.5 mm	12 mm	15 mm	14.5 mm
60210-06-04	3/8"	1/4"	0.275"	7 mm	52 mm	26 mm	16 mm	16 mm	17.5 mm
60210-06-06	3/8"	3/8"	0.295"	7.5 mm	52 mm	24 mm	16 mm	17 mm	17.5 mm
60210-06-08	3/8"	1/2"	0.354"	9 mm	52 mm	24 mm	16 mm	21 mm	17.5 mm
60210-08-06	1/2"	3/8"	0.295"	7.5 mm	60.5 mm	25.5 mm	19 mm	20 mm	20.5 mm
60210-08-08	1/2"	1/2"	0.354"	9 mm	60.5 mm	28 mm	19 mm	21 mm	20.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
