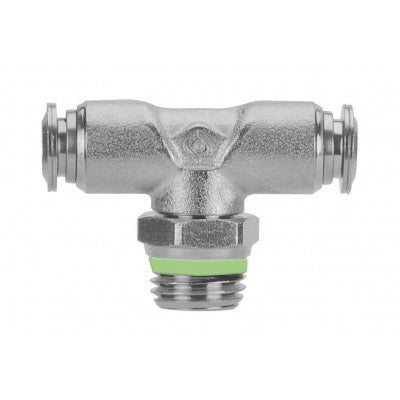

60210-08-08 AIGNEP | 60/62 Series | Stainless Steel Swivel Branch Tee | 1/2" Tube Push Connect x 1/2" Male Swift-Fit Universal Thread | FKM Seal
60210-08-08 by AIGNEP | 60/62 Series | Swivel Branch | 1/2" Tube Push Connect x 1/2" Male Swift-Fit Universal Thread | Tee | FKM Seal | Stainless Steel
60210-08-08 AIGNEP | 60/62 Series | Stainless Steel Swivel Branch Tee | 1/2" Tube Push Connect x 1/2" Male Swift-Fit Universal Thread | FKM Seal

60210-08-08 by AIGNEP | 60/62 Series | Swivel Branch | 1/2" Tube Push Connect x 1/2" Male Swift-Fit Universal Thread | Tee | FKM Seal | Stainless Steel

Save $16.25 Save $16.25
$93.89
$93.89 - $93.89
$93.89
$77.64
$77.64 - $77.64
$77.64
Specifications for Variant SKU: 60210-08-08 AIGNEP
Series: 60/62 Series
Shape (Orientation): Tee
Ends Configuration: 1/2in Push-to-Connect, 1/2in Male Swift-Fit
Material(s): Stainless Steel
Seal Material(s): Viton/FKM

Swivel Branch Tee Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT

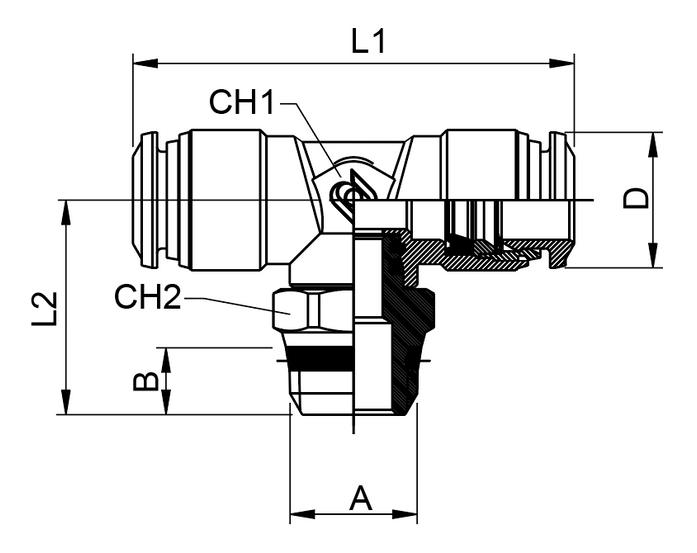

Product Number Tube A B (IN) B L1 L2 CH1 CH2 D
60210-53-32 5/32" 10-32 0.157" 4 mm 36 mm 16 mm 9 mm 8 mm 10 mm
60210-53-02 5/32" 1/8" 0.216" 5.5 mm 36 mm 17.5 mm 9 mm 13 mm 10 mm
60210-53-04 5/32" 1/4" 0.275" 7 mm 36 mm 19 mm 9 mm 15 mm 10 mm
60210-04-02 1/4" 1/8" 0.216" 5.5 mm 42 mm 19 mm 11 mm 13 mm 12.5 mm
60210-04-04 1/4" 1/4" 0.275" 7 mm 42 mm 20.5 mm 11 mm 15 mm 12.5 mm
60210-05-02 5/16" 1/8" 0.216" 5.5 mm 45 mm 21.5 mm 12 mm 13 mm 14.5 mm
60210-05-04 5/16" 1/4" 0.275" 7 mm 45 mm 21.5 mm 12 mm 15 mm 14.5 mm
60210-06-04 3/8" 1/4" 0.275" 7 mm 52 mm 26 mm 16 mm 16 mm 17.5 mm
60210-06-06 3/8" 3/8" 0.295" 7.5 mm 52 mm 24 mm 16 mm 17 mm 17.5 mm
60210-06-08 3/8" 1/2" 0.354" 9 mm 52 mm 24 mm 16 mm 21 mm 17.5 mm
60210-08-06 1/2" 3/8" 0.295" 7.5 mm 60.5 mm 25.5 mm 19 mm 20 mm 20.5 mm
60210-08-08 1/2" 1/2" 0.354" 9 mm 60.5 mm 28 mm 19 mm 21 mm 20.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
