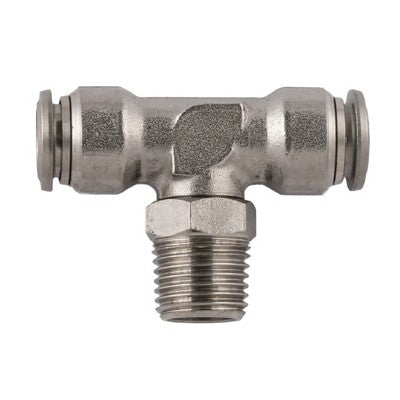

60210-8-1/4" AIGNEP | 60/62 Series | Stainless Steel Swivel Branch Tee | 8mm Tube Push Connect x 1/4" Male BSPT Male | FKM Seal
60210-8-1/4 by AIGNEP | 60/62 Series | Swivel Branch | 8mm Tube Push Connect x 1/4" Male BSPT Male | Tee | FKM Seal | Stainless Steel
60210-8-1/4" AIGNEP | 60/62 Series | Stainless Steel Swivel Branch Tee | 8mm Tube Push Connect x 1/4" Male BSPT Male | FKM Seal

60210-8-1/4 by AIGNEP | 60/62 Series | Swivel Branch | 8mm Tube Push Connect x 1/4" Male BSPT Male | Tee | FKM Seal | Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Specifications for Variant SKU: 60210-8-1/4 AIGNEP
Series: 60/62 Series
Shape (Orientation): Tee
Ends Configuration: 8mm Push-to-Connect, 1/4in Male BSPT
Material(s): Stainless Steel
Seal Material(s): Viton/FKM

Swivel Branch Tee Stainless - BSPT

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

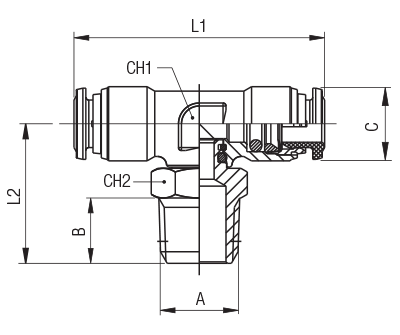

Product Number Tube A B C L1 L2 CH1 CH2
60210-4-1/8 4 mm 1/8" 7.5 mm 10 mm 36 mm 18.5 mm 9 mm 11 mm
60210-4-1/4 4 mm 1/4" 11 mm 10 mm 36 mm 22.5 mm 9 mm 14 mm
60210-6-1/8 6 mm 1/8" 7.5 mm 12.5 mm 42 mm 19.5 mm 11 mm 11 mm
60210-6-1/4 6 mm 1/4" 11 mm 12.5 mm 42 mm 23.5 mm 11 mm 14 mm
60210-8-1/8 8 mm 1/8" 7.5 mm 14.5 mm 45 mm 20.5 mm 12 mm 11 mm
60210-8-1/4 8 mm 1/4" 11 mm 14.5 mm 45 mm 24.5 mm 12 mm 14 mm
60210-10-1/4 10 mm 1/4" 11 mm 17.5 mm 52 mm 26 mm 16 mm 14 mm
60210-10-3/8 10 mm 3/8" 11.5 mm 17.5 mm 52 mm 27.5 mm 16 mm 17 mm
60210-10-1/2 10 mm 1/2" 14 mm 17.5 mm 52 mm 31 mm 16 mm 22 mm
60210-12-3/8 12 mm 3/8" 11.5 mm 20.5 mm 61 mm 30.5 mm 19 mm 18 mm
60210-12-1/2 12 mm 1/2" 14 mm 20.5 mm 61 mm 33 mm 19 mm 22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
