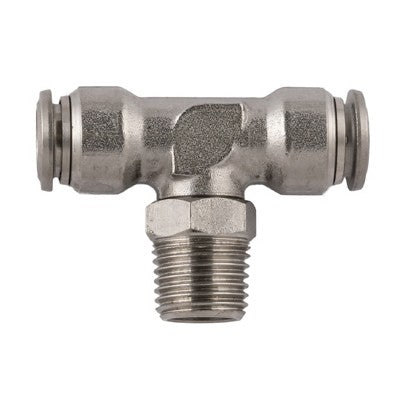

60210-8-1/8" AIGNEP | 60/62 Series | Stainless Steel Swivel Branch Tee | 8mm Tube Push Connect x 1/8" Male BSPT Male | FKM Seal

60210-8-1/8 by AIGNEP | 60/62 Series | Swivel Branch | 8mm Tube Push Connect x 1/8" Male BSPT Male | Tee | FKM Seal | Stainless Steel

Save $14.61

$56.60

$56.60 - $56.60

$56.60

$41.99

$41.99 - $41.99

$41.99

Specifications for Variant SKU: 60210-8-1/8 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Tee
Ends Configuration:	8mm Push-to-Connect, 1/8in Male BSPT
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Swivel Branch Tee Stainless - BSPT

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

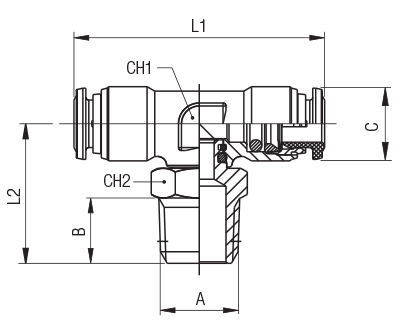

Tube	A	B	C	L1	L2	CH1	CH2
60210-4-1/8	4 mm	1/8"	7.5 mm	10 mm	36 mm	18.5 mm	9 mm	11 mm
60210-4-1/4	4 mm	1/4"	11 mm	10 mm	36 mm	22.5 mm	9 mm	14 mm
60210-6-1/8	6 mm	1/8"	7.5 mm	12.5 mm	42 mm	19.5 mm	11 mm	11 mm
60210-6-1/4	6 mm	1/4"	11 mm	12.5 mm	42 mm	23.5 mm	11 mm	14 mm
60210-8-1/8	8 mm	1/8"	7.5 mm	14.5 mm	45 mm	20.5 mm	12 mm	11 mm
60210-8-1/4	8 mm	1/4"	11 mm	14.5 mm	45 mm	24.5 mm	12 mm	14 mm
60210-10-1/4	10 mm	1/4"	11 mm	17.5 mm	52 mm	26 mm	16 mm	14 mm
60210-10-3/8	10 mm	3/8"	11.5 mm	17.5 mm	52 mm	27.5 mm	16 mm	17 mm
60210-10-1/2	10 mm	1/2"	14 mm	17.5 mm	52 mm	31 mm	16 mm	22 mm
60210-12-3/8	12 mm	3/8"	11.5 mm	20.5 mm	61 mm	30.5 mm	19 mm	18 mm
60210-12-1/2	12 mm	1/2"	14 mm	20.5 mm	61 mm	33 mm	19 mm	22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
