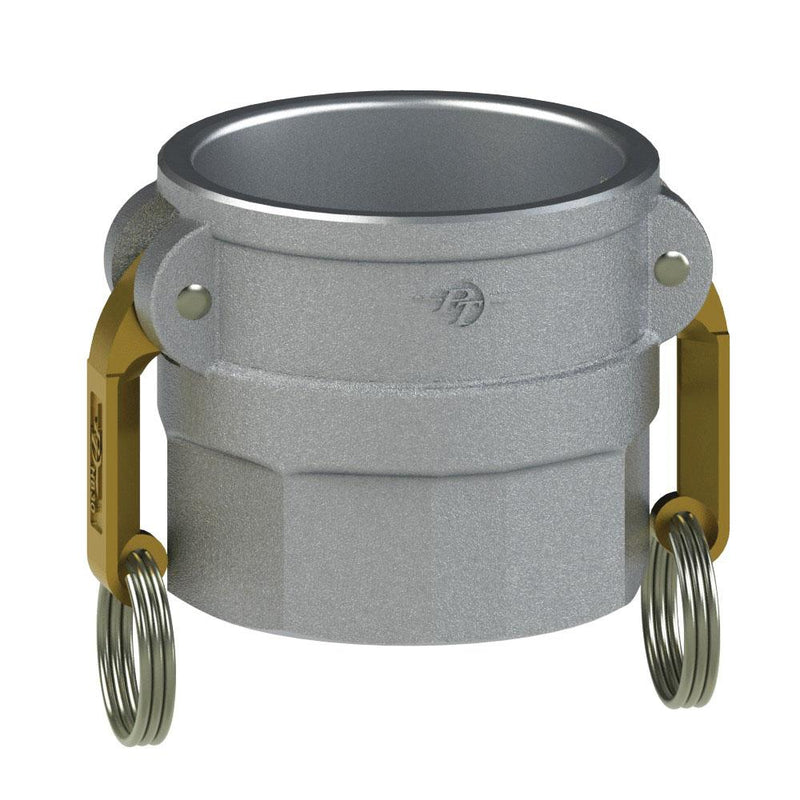

6036000051 (40DS) by PT-Coupling | Cam & Groove Adapter | Type DS | 4" Coupler x 4" Female NPSH | Aluminum/HB | Buna Fuel Resistant & Buna-N Seals

6036000051 (40DS) by PT-Coupling | Cam & Groove Adapter | Type DS | 4" Coupler x 4" Female NPSH | Aluminum/HB | Buna Fuel Resistant & Buna-N Seals

Save $42.54 Save $42.54
$114.62
$114.62 - $114.62
$114.62
$72.08
$72.08 - $72.08
$72.08

PT Coupling
Cam & Groove (Camlock) Adapter | Type DS | Coupler x Female NPSH | Aluminum/HB | Buna Fuel Resistant & Buna-N Seals

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 6036000051 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 4in Female Cam & Groove, 4in Female NPSH
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • HB cam arms are made of Brass.
  • Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads.
  • Comes standard with a Buna Fuel Resistant straight thread gasket, and Buna-N cam gasket.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Female NPSH
Thread		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
40DS 6036000051 4" 4" 10.66" 6.56" 3.90" 3.60" 150 PSI
50DS 6036000052 5" 5" 11.67" 7.57" 4.10" 4.50" 75 PSI
60DS 60366000 6" 6" 16.26" 10.16" 4.40" 5.50" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
