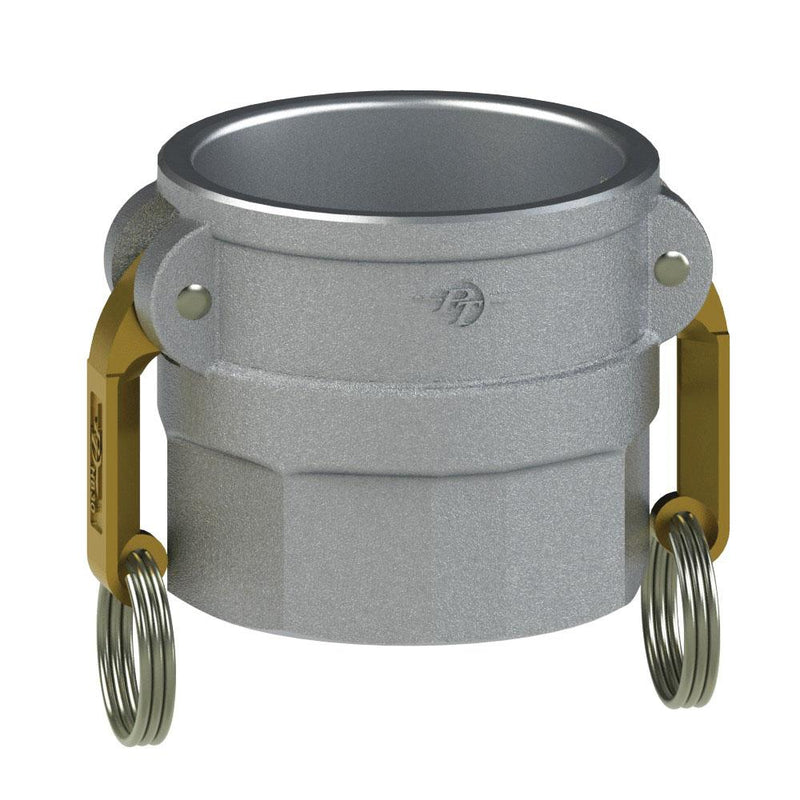

6036000052 (50DS) by PT-Coupling | Cam & Groove Adapter | Type DS | 5" Coupler x 5" Female NPSH | Aluminum/HB | Buna Fuel Resistant & Buna-N Seals

6036000052 (50DS) by PT-Coupling | Cam & Groove Adapter | Type DS | 5" Coupler x 5" Female NPSH | Aluminum/HB | Buna Fuel Resistant & Buna-N Seals

Save $56.40 Save $56.40
$151.92
$151.92 - $151.92
$151.92
$95.52
$95.52 - $95.52
$95.52

PT Coupling
Cam & Groove (Camlock) Adapter | Type DS | Coupler x Female NPSH | Aluminum/HB | Buna Fuel Resistant & Buna-N Seals

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 6036000052 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 5in Female Cam & Groove, 5in Female NPSH
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • HB cam arms are made of Brass.
  • Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads.
  • Comes standard with a Buna Fuel Resistant straight thread gasket, and Buna-N cam gasket.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Female NPSH
Thread		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
40DS 6036000051 4" 4" 10.66" 6.56" 3.90" 3.60" 150 PSI
50DS 6036000052 5" 5" 11.67" 7.57" 4.10" 4.50" 75 PSI
60DS 60366000 6" 6" 16.26" 10.16" 4.40" 5.50" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
