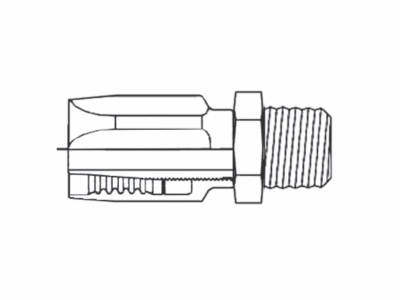

603R-1 Couplamatic Reusable Coupling - R1 & R2 Reusables - NPTF - Male Solid - 3/8" Hose ID - 3/8-18 Thread Size (for 100R1 Thin Hose)

603R-1 by Couplamatic | R1 & R2 Reusable Coupling | 3/8" Hose ID x 3/8-18 Thread Size | for 100R1 Thin Hose NPTF Male Solid | Straight | Trivalent Zinc Plating

Save $8.71 Save $8.71
$21.78
$21.78 - $21.78
$21.78
$13.07
$13.07 - $13.07
$13.07

Couplamatic Systems Inc.
Reusable Couplings - 100R1AT & 100R2AT - R1 & R2 Reusables - NPTF - Male Solid
Specifications for Variant SKU: 603R-1 Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 3/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
    • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
    Part Number Hose ID Pipe Size Thread Size Hose Type
    403R-1 1/4" 1/4" 1/4-18 100R1 Thin
    403R-2 1/4" 1/4" 1/4-18 100R2 Thin
    603R-1 3/8" 3/8" 3/8-18 100R1 Thin
    603R-2 3/8" 3/8" 3/8-18 100R2 Thin
    803R-1 1/2" 1/2" 1/2-14 100R1 Thin
    803R-2 1/2" 1/2" 1/2-14 100R2 Thin
    1203R-2 3/4" 3/4" 3/4-14 100R2 Thin
    1600R-2 1" 1" 1-11-1/2 100R2 Thin
