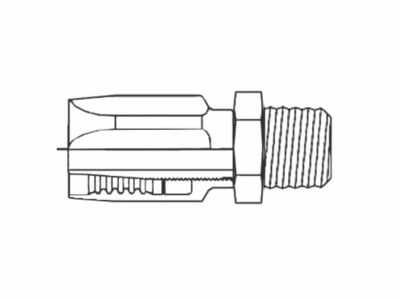

803R-1 Couplamatic Reusable Coupling - R1 & R2 Reusables - NPTF - Male Solid - 1/2" Hose ID - 1/2-14 Thread Size (for 100R1 Thin Hose)

803R-1 by Couplamatic | R1 & R2 Reusable Coupling | 1/2" Hose ID x 1/2-14 Thread Size | for 100R1 Thin Hose NPTF Male Solid | Straight | Trivalent Zinc Plating

Save $9.78 Save $9.78
$24.45
$24.45 - $24.45
$24.45
$14.67
$14.67 - $14.67
$14.67

Couplamatic Systems Inc.
Reusable Couplings - 100R1AT & 100R2AT - R1 & R2 Reusables - NPTF - Male Solid
Specifications for Variant SKU: 803R-1 Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/2in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Reusable — Field Attachable

403R Reusable Coupling — NPTF Male Solid, Straight

403R is the NPTF Male Solid, Straight configuration of the Reusable Coupling, terminating 100R1 and 100R2 thin cover hose, or 100R5 textile cover hose, depending on the series.

1

What are the main product features?
  • Non-Mandrel and No Skive
  • Trivalent Zinc Plating
  • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
  • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
  • Field attachable — assembles with hand tools; no crimp machine needed.
  • Reusable — the coupling can be removed and reinstalled on a new length of hose.
  • Ideal for field repair — keeps equipment running where a crimper is not available.
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Hose Type
403R-1 1/4" 1/4" 1/4-18 100R1 Thin
403R-2 1/4" 1/4" 1/4-18 100R2 Thin
603R-1 3/8" 3/8" 3/8-18 100R1 Thin
603R-2 3/8" 3/8" 3/8-18 100R2 Thin
803R-1 1/2" 1/2" 1/2-14 100R1 Thin
803R-2 1/2" 1/2" 1/2-14 100R2 Thin
1203R-2 3/4" 3/4" 3/4-14 100R2 Thin
1600R-2 1" 1" 1-11-1/2 100R2 Thin

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
