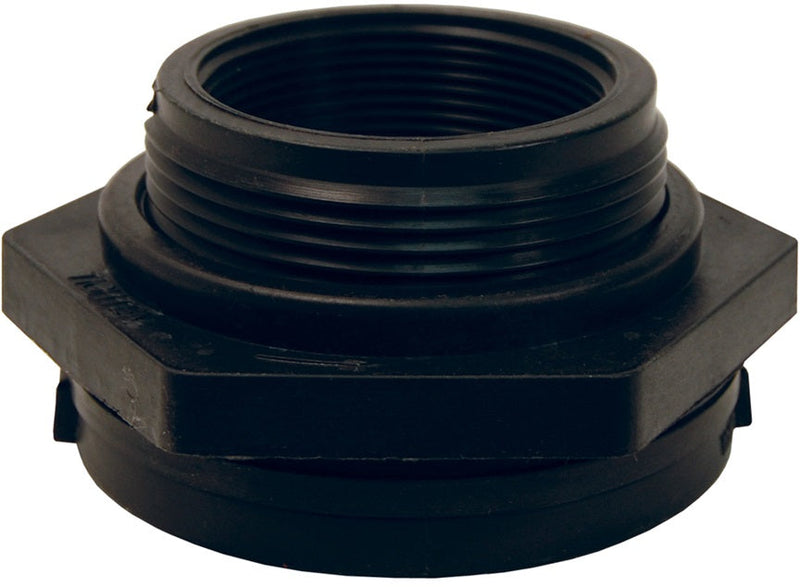

60401 by Dixon Valve | Bulkhead Fitting | 3/4" Female NPT | 1-7/16" Hole Size | Polypropylene

60401 by Dixon Valve | Bulkhead Fitting | 3/4" Female NPT | 1-7/16" Hole Size | Polypropylene

Save $0.65 Save $0.65
$8.09
$8.09 - $8.09
$8.09
$7.44
$7.44 - $7.44
$7.44

Dixon Valve
Bulkhead Fitting | Female NPT

For use on most poly storage tanks and many steel and fiberglass tanks.
Specifications for Variant SKU: 60401 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s): Polypropylene
Seal Material(s): EPDM
Features:
  • Glass reinforced polypropylene provides strength and chemical resistance.
  • EPDM gaskets are standard.
  • 1-1/2" and 3" do not contain a washer.
Safety Notes:
  • Polypropylene fittings should not be used with compressed gas.
  • Should not be used with aromatic hydrocarbons, carbon tetra-chloride, gasoline, hexane, kerosene, nitric acid, sodium hydrochlorite, toluene, trichloroethylene or xylene.
  • Fittings are black.
Polypropylene
Part Number		 Female NPT Hole Size
62834 1/2" 1-7/16"
60401 3/4" 1-7/16"
60427 1" 2-1/4"
60403 1-1/4" 2-1/4"
60124 1-1/2" 3"
63931 (No Washer) 1-1/2" 2-3/8"
60405 2" 3"
63481 2" 3"
63683 2" 3-1/4"
62299 (No Washer) 3" 4-1/2"

* Designed for tank wall thickness less than 3/8" - low profile.

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
